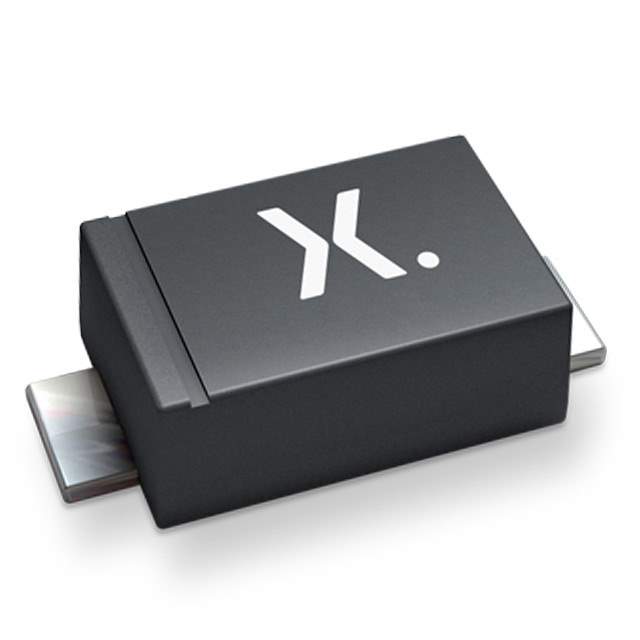

PMEG40T30ERX

Name: PMEG40T30ERX
Brand: Nexperia USA Inc.
SKU: 1324307
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PMEG40T30ERX
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 40V 3A SOD123W / Diode Schottky 40 V 3A Surface Mount SOD-123W
Datasheet	PMEG40T30ERX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	460 mV @ 3 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	18 ns
Current - Reverse Leakage @ Vr	28 µA @ 40 V
Capacitance @ Vr, F	560pF @ 1V, 1MHz
Mounting	Surface Mount
Case / Package	SOD-123W
Supplier Device Package	SOD-123W
Operating Temperature - Junction	175°C (Max)
Base Product Number	PMEG40
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	NEXNEXPMEG40T30ERX,934070414115,PMEG40T30ERX-ND,1727-7481-6,1727-7481-2,1727-7481-1,2156-PMEG40T30ERX-NEX
Standard Package	3,000
Win Source Part Number	1324307-PMEG40T30ERX
Ultra Librarian 3D Model	Ultra Librarian PMEG40T30ERX CAD Model

Alternative Products

Description

The PMEG40T30ERX is a Schottky diode from Nexperia USA Inc. that is commonly used in rectification applications.

Maximum Reverse Voltage: 40 V
Average Rectified Current: 3 A
Forward Voltage: 460 mV @ 3 A
Reverse Recovery Time: 18 ns
Reverse Leakage Current: 28 µA @ 40 V
Capacitance: 560 pF @ 1 V and 1 MHz
Mounting: Surface Mount
Package: SOD-123W
EAR99 Compliant: Yes
REACH: Unaffected
HTSUS Code: 8541.10
