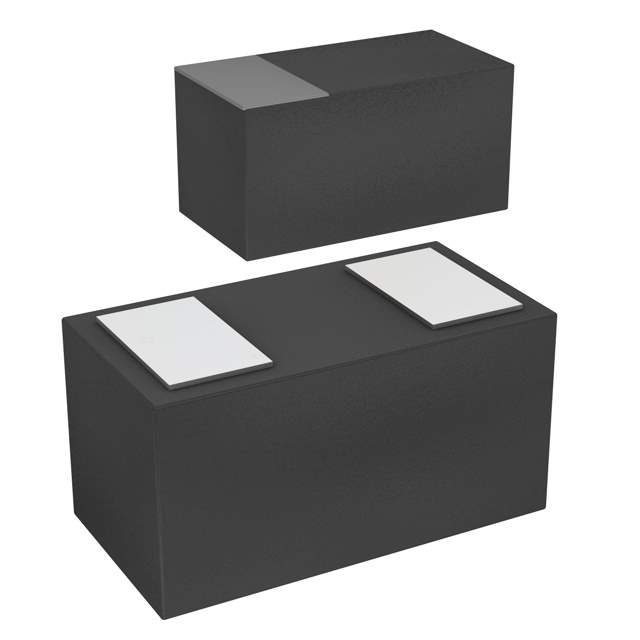

PESD12VA-SFYL Real Image
Same model may have multiple batches, images only for reference.

PESD12VA-SFYL

Part No PESD12VA-SFYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 30VC DSN0603-2 / 30V Clamp 6.1A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2
Datasheet
PESD12VA-SFYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V (Max)
Voltage - Breakdown (Min) 14V
Voltage - Clamping (Max) @ Ipp 30V
Current - Peak Pulse (10/1000µs) 6.1A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 17pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C
Mounting Surface Mount
Case / Package 0201 (0603 Metric)
Supplier Device Package DSN0603-2
Base Product Number PESD12
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 934660578315,1727-8648-6,1727-8648-2,1727-8648-1
Standard Package 9,000
Win Source Part Number 1334951-PESD12VA-SFYL
Ultra Librarian 3D Model Ultra Librarian PESD12VA-SFYL CAD Model

Description

The PESD12VA-SFYL Zener diode is a surface mount device from Nexperia USA Inc. with a reverse standoff voltage of 12V (Max) and a breakdown voltage of 14V (Min).

  • Reverse Standoff Voltage: 12V (Max)
  • Breakdown Voltage: 14V (Min)
  • Clamping Voltage @ Peak Pulse Current (Ipp): 30V
  • Package: DSN0603-2
  • Capacitance @ 1MHz: 17pF
  • Peak Pulse Current: 6.1A (8/20μs)
  • Operating Temperature Range: -55°C to 150°C
  • Application: General-purpose circuit protection
