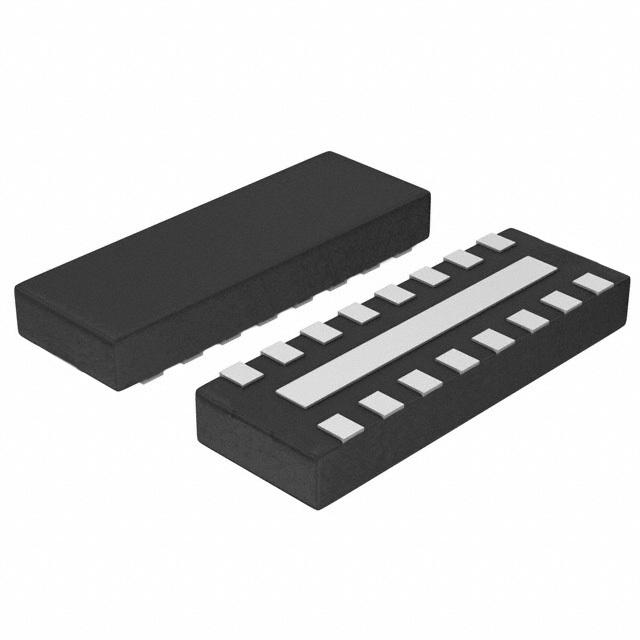

Same model may have multiple batches, images only for reference.
IP4252CZ16-8-TTL,1 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4252CZ16-8-TTL,1

Part No IP4252CZ16-8-TTL,1
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 40 OHM/12PF SMD
Datasheet
IP4252CZ16-8-TTL,1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 8
Attenuation Value 12dB @ 800MHz to 3GHz
Resistance - Channel (Ohms) 40
Values R = 40 Ohms, C = 12pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications LAN, WAN
Mounting SMD (SMT)
Dimension 0.130" L x 0.053" W (3.30mm x 1.35mm)
Height 0.022" (0.55mm)
Win Source Part Number 1045657-IP4252CZ16-8-TTL,1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IP4252CZ16-8-TTL,1 CAD Model

Description

The IP4252CZ16-8-TTL,1 is a low pass filter that is suitable for use in various LAN and WAN applications from Nexperia USA Inc.

  • Manufacturer: Nexperia USA Inc.
  • Product Name: IP4252CZ16-8-TTL,1
  • Type: Low Pass Filter
  • Applications: LAN and WAN
  • Filter Order: 2nd Order
  • Attenuation: 12dB @ 800MHz to 3GHz
  • Resistance - Channel (Ohms): 40
  • Values: R = 40 Ohms, C = 12pF (Total)
  • Features: ESD Protection
  • Packaging: SMD (SMT)
  • Operating Temperature: -40°C to 85°C
  • Dimension: 0.130" L x 0.053" W (3.30mm x 1.35mm)
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
