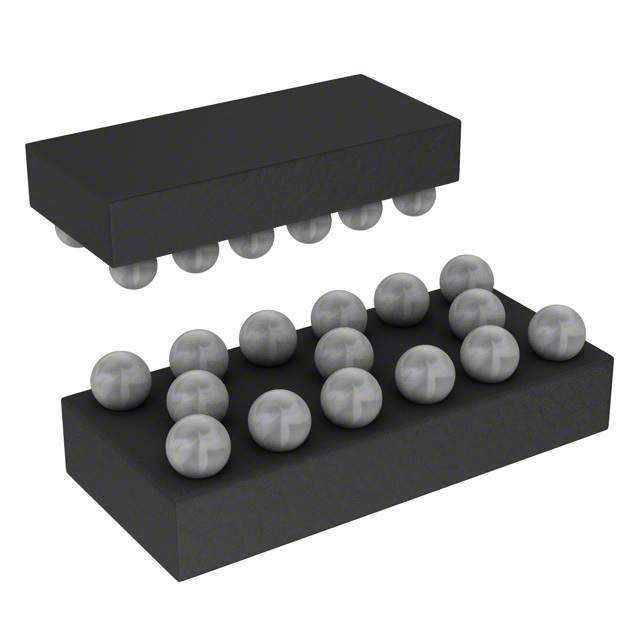

IP3088CX15,135 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP3088CX15,135

Part No IP3088CX15,135
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 40NH/42PF ESD SMD
Datasheet
IP3088CX15,135 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 5th
Technology LC (Pi)
Number of Channels 6
Center / Cutoff Frequency 175MHz (Cutoff)
Attenuation Value 40dB @ 800MHz to 1.5GHz
Resistance - Channel (Ohms) 18
Current 30mA
Values L = 40nH (Total), C = 42pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications GSM, LAN, PCS, WAN
Mounting SMD (SMT)
Dimension 0.117" L x 0.050" W (2.96mm x 1.28mm)
Height 0.028" (0.70mm)
Win Source Part Number 1045624-IP3088CX15,135
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4,500
Ultra Librarian 3D Model Ultra Librarian IP3088CX15,135 CAD Model

Description

The Nexperia USA Inc. IP3088CX15,135 is a low pass filter with a cutoff frequency of 175MHz.

  • Cutoff Frequency: 175MHz
  • Filter Order: 5th
  • Attenuation: 40dB @ 800MHz to 1.5GHz
  • Resistance: 18 Ohms
  • Current: 30mA
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.117" L x 0.050" W (2.96mm x 1
