The CBT3257ABQ,115 is a quad 1-of-2 multiplexer/demultiplexer switch manufactured by Nexperia. This device enables the selection of one of two data inputs to be routed to a single output, or conversely, the routing of a single input to one of two outputs. It's often used in applications requiring efficient signal routing and multiplexing where space is limited. The ‘115’ indicates tape and reel packaging.

Applications

• Signal Multiplexing: Combining multiple signals onto a single channel.
• Signal Demultiplexing: Separating a single channel into multiple signals.
• Bus Switching: Connecting different bus segments.
• Memory Selection: Selecting different memory devices.
• Data Routing: Directing data streams to different destinations.

Features

• Quad 1-of-2 Multiplexer/Demultiplexer: Contains four independent 1-of-2 switches.
• Low On-Resistance: Reduces signal attenuation and distortion.
• High Bandwidth: Supports high-speed data transmission.
• Wide Operating Voltage Range: Operates over a broad range of supply voltages.
• ESD Protection: Provides protection against electrostatic discharge.

Benefits

• Versatile Signal Routing: Enables flexible signal routing and multiplexing.
• Minimal Signal Degradation: Low on-resistance ensures minimal signal loss.
• High-Speed Performance: Supports high-speed data transmission.
• Robust Design: ESD protection enhances reliability.

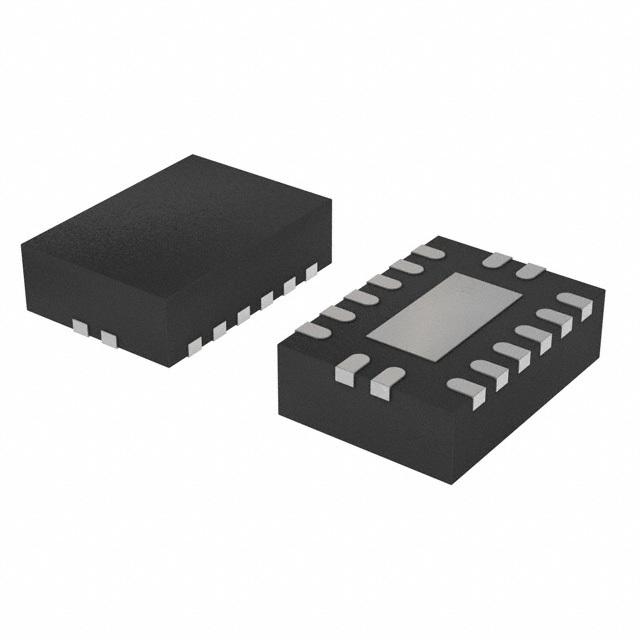

The CBT3257ABQ,115 is packaged in a DHVQFN16 (Discrete High Voltage Quad Flatpack No-leads) package, which is a small, surface-mount package, ideal for space-constrained applications. Key specifications include a typical on-resistance of 5 Ohms, a bandwidth in excess of 250 MHz, and an operating voltage range of 2.3V to 3.6V. This device is designed for high-performance applications where signal integrity and space efficiency are critical. It is well-suited for portable devices and other applications where size and power consumption are important considerations.
