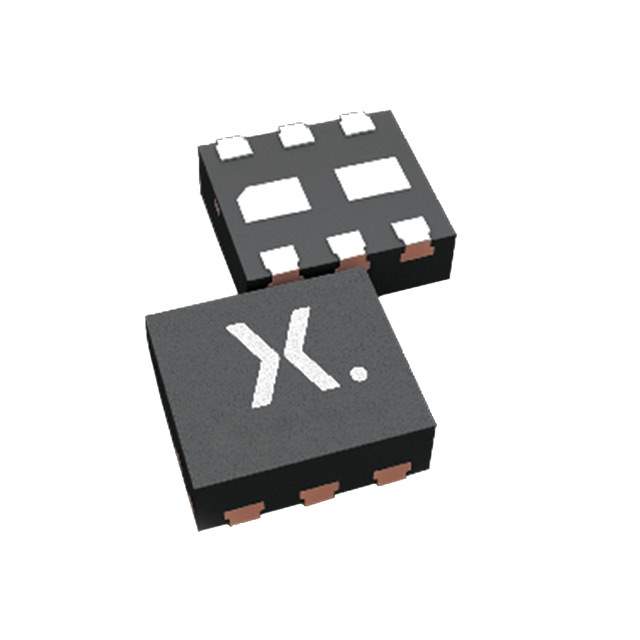

BAW56SRAZ Real Image
Same model may have multiple batches, images only for reference.

BAW56SRAZ

Part No BAW56SRAZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 90V 375MA 6DFN / Diode Array 2 Pair Common Cathode Standard 90 V 375mA (DC) Surface Mount 6-XFDFN Exposed Pad
Datasheet
BAW56SRAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Configuration 2 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 90 V
Current - Average Rectified (Io) (per Diode) 375mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 500 nA @ 80 V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Package / Case 6-XFDFN Exposed Pad
Supplier Device Package DFN1412-6
Base Product Number BAW56S
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names NEXNXPBAW56SRAZ,934070159147,2156-BAW56SRAZ-NEX,1727-7381-6,1727-7381-2,BAW56SRAZ-ND,1727-7381-1
Standard Package 5,000
Win Source Part Number 1113670-BAW56SRAZ
Ultra Librarian 3D Model Ultra Librarian BAW56SRAZ CAD Model

Description

The BAW56SRAZ is a rectifier diode array from Nexperia USA Inc.

  • Maximum DC Reverse Voltage (Vr): 90V
  • Maximum Forward Voltage (Vf): 1.25V @ 150mA
  • Reverse Recovery Time (trr): 4ns
  • Current Reverse Leakage (Vr): 500nA @ 80V
  • Average Rectified Current (Io): 375mA (DC) per diode
  • Package: 6-XFDFN Exposed Pad
  • Operating Temperature: 150°C (Max)
  • Category: Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
