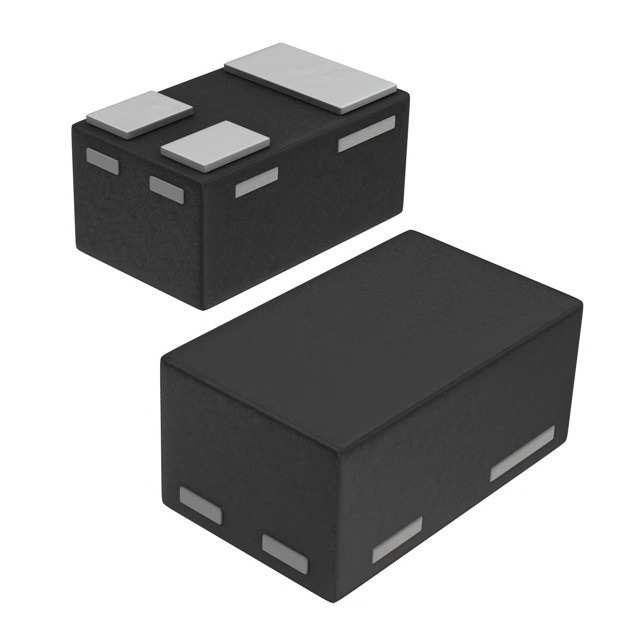

BAV70M,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAV70M,315

Part No BAV70M,315
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 100V 150MA SOT883
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia USA Inc.
Packaging Reel
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 150mA (DC)
Voltage - Forward (Vf) (Maximum) at If 1.25V at 150mA
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage at Vr 500nA at 80V
Operating Temperature - Junction 150°C (Maximum)
Mounting Style SMD
Manufacturer Package SC-101, SOT-883
Supplier Device Package DFN1006-3
Part Number Series BAV70M
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802746-BAV70M,315
Ultra Librarian 3D Model Ultra Librarian BAV70M,315 CAD Model

Description

The Nexperia BAV70M,315 is a standard diode type IC from Nexperia.

  • Voltage - DC Reverse: 100V (Maximum)
  • Reverse Recovery Time (trr): 4ns
  • Diode Configuration: 1 Pair Common Cathode
  • Current - Average Rectified (Io) (per Diode): 150mA (DC)
  • Package / Case: SC-101, SOT-883
  • Voltage - Forward (Vf) (Max): 1.25V @ 150mA
  • Current - Reverse Leakage: 500nA @ 80V
  • Mounting Type: SMD
  • Packaging: Reel
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 10,000
  • MSL: 1 (Unlimited)
