The 74LVC2G126GN,115 from Nexperia is a dual bus buffer/line driver with 3-state output. This device provides two independent buffer gates, each with a 3-state output that can be enabled or disabled. It is designed for low-voltage operation and high-speed performance, making it suitable for various digital logic applications.

Applications:

• Bus interface
• Line driving
• Memory addressing
• Data multiplexing
• General-purpose buffering

Features:

• Dual bus buffer/line driver with 3-state output
• Wide supply voltage range: 1.65 V to 5.5 V
• High-speed propagation delay: tpd = 4.0 ns (typical) at 3.3 V
• Low power consumption
• Output enable control
• Overvoltage tolerant input
• ESD protection: HBM > 2000 V, MM > 200 V
• CMOS technology

Benefits:

• Provides efficient bus interface and line driving capabilities.
• Facilitates fast and reliable data transfer due to its high-speed performance.
• Reduces power consumption, making it suitable for battery-powered applications.
• Enables output isolation using the 3-state output, simplifying system design.
• Protects against electrostatic discharge, enhancing system reliability.
• Compact design saves board space and reduces component count.

Additional Details:

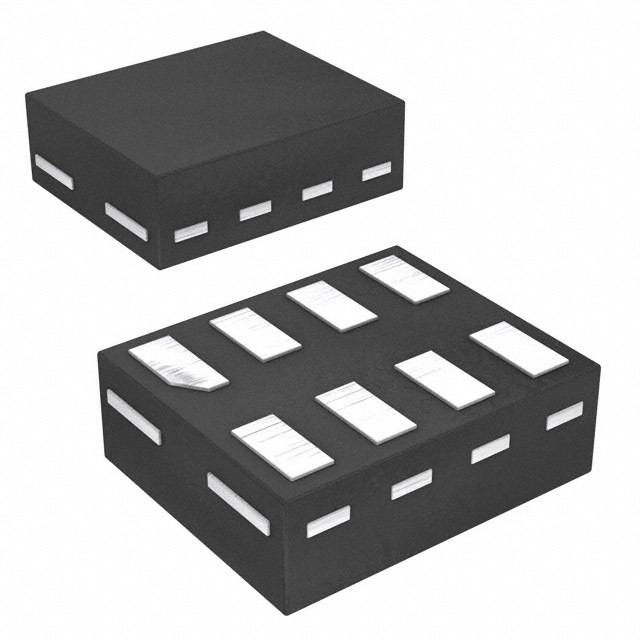

The 74LVC2G126GN,115 is available in a space-saving XSON8 package. Each buffer has an input (A), an output (Y), and an output enable input (OE). When OE is high, the output is enabled, and the signal at A is passed to Y. When OE is low, the output is disabled and the output is in a high-impedance state. This device is ideal for applications requiring bus interface, line driving, and output isolation. The 74LVC2G126GN,115 is a cost-effective and efficient solution for implementing these functionalities in digital circuits. Its small size and comprehensive features make it a versatile component for various applications. The 3-state output provides added flexibility in circuit design, allowing the device to be used in a wide range of applications where output isolation is required. The device’s high-speed performance ensures that signals are processed quickly and efficiently, maintaining signal integrity and minimizing data errors.
