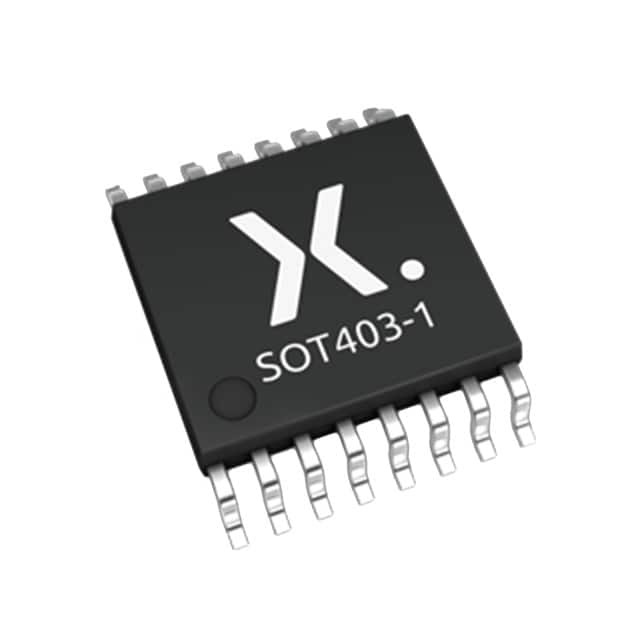

The 74HC4051PW,112 is a single 8-channel analog multiplexer/demultiplexer manufactured by Nexperia. This device is part of the 74HC family, known for its high-speed CMOS technology. It is designed to switch one of eight inputs to a single output, or vice versa, controlled by a 3-bit binary address input. It's widely used in various electronic systems for signal routing, data selection, and analog signal switching.

Applications:

• Analog Signal Routing
• Data Acquisition Systems
• Audio and Video Switching
• Multiplexing Sensors
• Test and Measurement Equipment

Features:

• 8-Channel Multiplexer/Demultiplexer: Provides eight input/output channels that can be switched to a common terminal.
• High-Speed CMOS Technology: Offers fast switching speeds and low power consumption.
• Wide Operating Voltage Range: Operates from 2V to 6V, making it versatile for various applications.
• Low On-Resistance: Minimizes signal loss during switching.
• TTL-Compatible Inputs: Compatible with TTL logic levels.

Benefits:

• Simplified Circuit Design: Reduces component count and simplifies circuit layout.
• Efficient Signal Routing: Enables flexible signal routing and selection.
• Low Power Consumption: Reduces energy usage, suitable for battery-powered devices.
• High Switching Speed: Ensures fast and accurate signal switching.
• Versatile Applications: Adaptable for a wide range of analog and digital systems.

The 74HC4051PW,112 is commonly used in systems where multiple analog or digital signals need to be switched or selected. It features a low on-resistance, which minimizes signal attenuation and distortion. The control inputs are TTL-compatible, allowing for easy interfacing with digital logic circuits. This device is available in a small outline package (SOP), making it suitable for space-constrained applications. The enable input allows the device to be disabled, placing all switches in the OFF state.

Technical Specifications:

• Function: 8-Channel Multiplexer/Demultiplexer
• Logic Type: HC (High-Speed CMOS)
• Supply Voltage: 2V to 6V
• On-Resistance (Ron): Typically around 70 ohms
• Package: SOP16 (Small Outline Package)
• Operating Temperature: -40°C to +125°C
