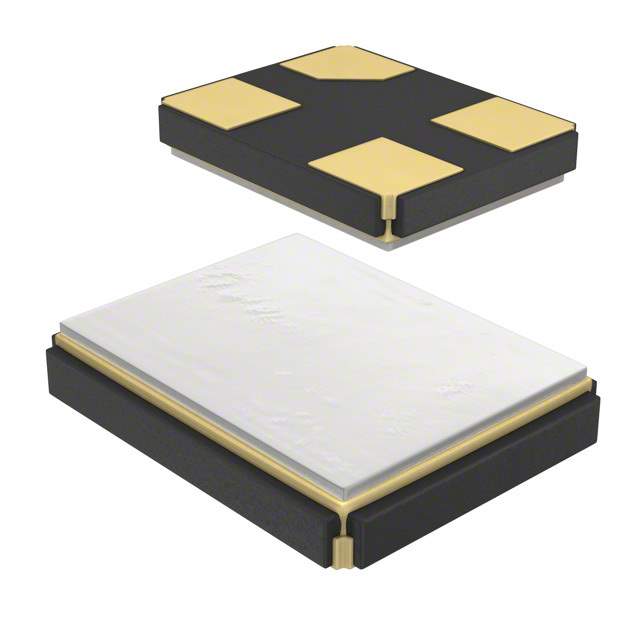

NZ2520SB-32.768KHZ-NSA3536C Real Image
Same model may have multiple batches, images only for reference.

NZ2520SB-32.768KHZ-NSA3536C

Part No NZ2520SB-32.768KHZ-NSA3536C
Manufacturer NDK
Catalog Oscillators
Description XTAL OSC XO 32.7680KHZ CMOS SMD / 32.768 kHz XO (Standard) CMOS Oscillator 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
NZ2520SB-32.768KHZ-NSA3536C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr NDK America, Inc.
Series NZ2520S
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 32.768 kHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±30ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 260µA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names NZ2520SB32768KHZNSA3536C,644-1199-6,644-1199-2,50157492,644-1199-1
Standard Package 3,000
Win Source Part Number 1196351-NZ2520SB-32.768KHZ-NSA3536C
Ultra Librarian 3D Model Ultra Librarian NZ2520SB-32.768KHZ-NSA3536C CAD Model

Description

The NZ2520SB-32.768KHZ-NSA3536C oscillator is a crystal oscillator that operates @ a frequency of 32.768 kHz.

  • Oscillator Type: Standby (power down)
  • Output: CMOS
  • Frequency Stability: ±30ppm
  • Current Supply: 260μA
  • Maximum Current Supply (Disabled): 10μA
  • Voltage Supply: 3.3V
  • Package: 4-SMD, no lead
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Absolute Pull Range (APR): -
  • ECCN: EAR99
  • Manufacturer: NDK America, Inc.
