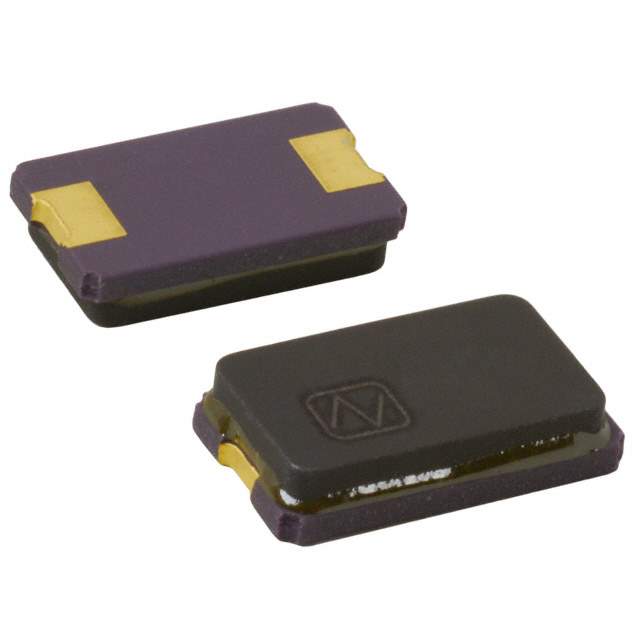

NX8045GB-5MHZ-STD-CSF-3 Real Image
Same model may have multiple batches, images only for reference.

NX8045GB-5MHZ-STD-CSF-3

Part No NX8045GB-5MHZ-STD-CSF-3
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 5.0000MHZ 8PF SMD / 5 MHz ±20ppm Crystal 8pF 250 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK
Series NX8045GB
Package Tape & Reel
Product Status Not For New Designs
Type MHz Crystal
Frequency 5 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 250 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0030
Win Source Part Number 929555-NX8045GB-5MHZ-STD-CSF-3
Ultra Librarian 3D Model Ultra Librarian NX8045GB-5MHZ-STD-CSF-3 CAD Model

Description

The NX8045GB-5MHZ-STD-CSF-3 is a MHz crystal from NDK.

  • Series: NX8045GB
  • Frequency: 5 MHz
  • ESR: 250 Ohms
  • Temperature Range: -10°C to 70°C
  • Mounting Type: Surface Mountable
  • Package: 2-SMD
  • Suitable for: Communication equipment, industrial automation systems, and consumer electronics
  • Product Status: Active
  • Packaging: Tape and reel
