Same model may have multiple batches, images only for reference.

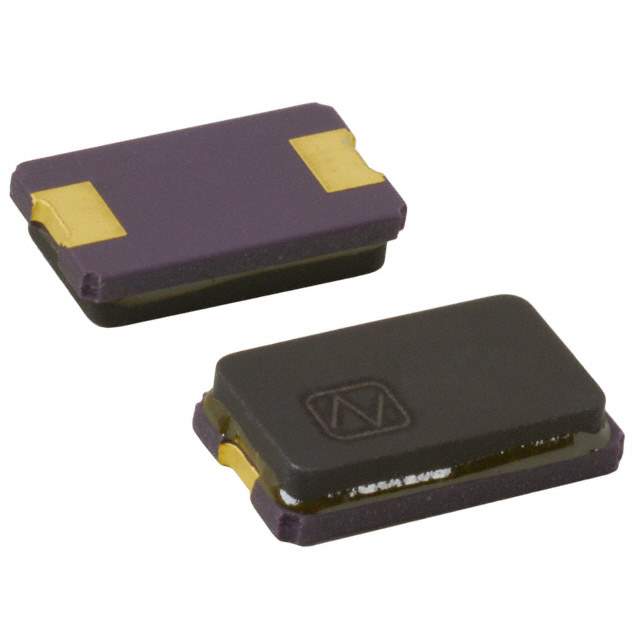

NX8045GB-40.000000MHZ Real Image
Same model may have multiple batches, images only for reference.

NX8045GB-40.000000MHZ

Part No NX8045GB-40.000000MHZ
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 40.0000MHZ 8PF SMD
Datasheet
NX8045GB-40.000000MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 40MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 8pF
ESR 50 Ohm
Operating Mode Fundamental
Temperature Range - Operating -10°C to 70°C
Mounting SMD (SMT)
Dimension 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 1005369-NX8045GB-40.000000MHZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NX8045GB-40.000000MHZ CAD Model

Description

The NDK America, Inc. MHz Crystal is a high-quality electronic component that is designed to meet the needs of various electronic devices.

  • Frequency: 40MHz
  • Frequency Stability: ±50ppm
  • Load Capacitance: 8pF
  • Seated Height: 0.079" (2.00mm)
  • Mounting: SMD (SMT)
  • Operating Mode: fundamental
  • Category: crystals, oscillators, and resonators
  • Operating Temperature Range: -10°C to 70°C
  • Dimension: 0.315" L x 0.177" W (8.00mm x 4.50mm)
  • Market Popularity: medium
  • Supply and Demand Status: balanced
