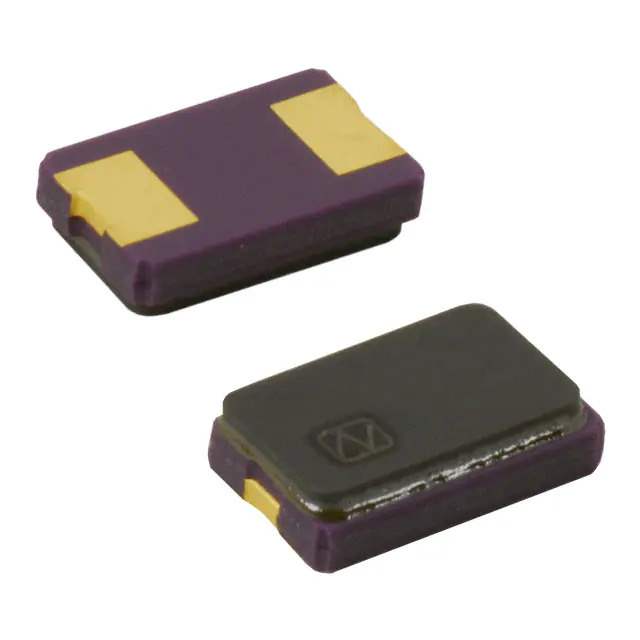

NX5032GA-14.31818M-STD-CSK-4 Real Image
Same model may have multiple batches, images only for reference.

NX5032GA-14.31818M-STD-CSK-4

Part No NX5032GA-14.31818M-STD-CSK-4
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 14.31818MHZ 8PF SMD / 14.31818 MHz ±20ppm Crystal 8pF 100 Ohms 2-SMD, No Lead
Datasheet
NX5032GA-14.31818M-STD-CSK-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK
Series NX5032GA
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 14.31818 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.059" (1.50mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 887965-NX5032GA-14.31818M-STD-CSK-4
Ultra Librarian 3D Model Ultra Librarian NX5032GA-14.31818M-STD-CSK-4 CAD Model

Description

The NX5032GA-14.31818M-STD-CSK-4 is a MHz Crystal from NDK.

  • Series: NX5032GA
  • Frequency: 14.31818 MHz
  • ESR (Equivalent Series Resistance): 100 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±20ppm
  • Operating Temperature Range: -10°C to 70°C
  • Package: Surface mount package on tape and reel
  • Size: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Height: 0.059" (1.50mm)
  • Standard Package: 1,000 pcs
