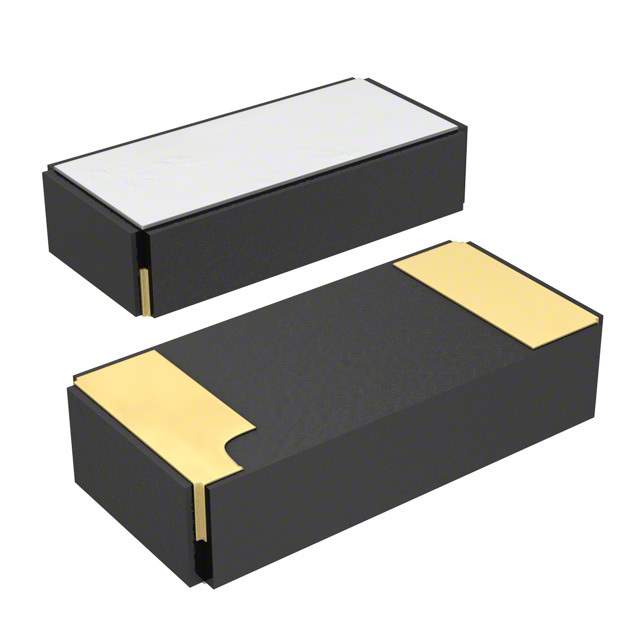

NX3215SA-32.768K-STD-MUA-14 Real Image
Same model may have multiple batches, images only for reference.

NX3215SA-32.768K-STD-MUA-14

Part No NX3215SA-32.768K-STD-MUA-14
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 32.7680KHZ 6PF SMD
Datasheet
NX3215SA-32.768K-STD-MUA-14 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Packaging Reel - TR
Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768kHz
Frequency Tolerance ±20ppm
Load Capacitance 6pF
ESR 70 kOhm
Operating Mode Fundamental
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Win Source Part Number 1084198-NX3215SA-32.768K-STD-MUA-14
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NX3215SA-32.768K-STD-MUA-14 CAD Model

Description

The NDK America, Inc. kHz Crystal (Tuning Fork) is a high-quality electronic component designed to provide a frequency of 32.768kHz with a frequency stability of - and a frequency tolerance of ±20ppm.

  • Frequency: 32.768kHz
  • Frequency Stability: -
  • Frequency Tolerance: ±20ppm
  • ESR: 70 kOhm
  • Load Capacitance: 6pF
  • Mode: Fundamental
  • Mounting Type: SMD (SMT)
  • Height: 0.035" (0.90mm)
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Category: Crystals, Oscillators, Resonators
  • Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Balanced
