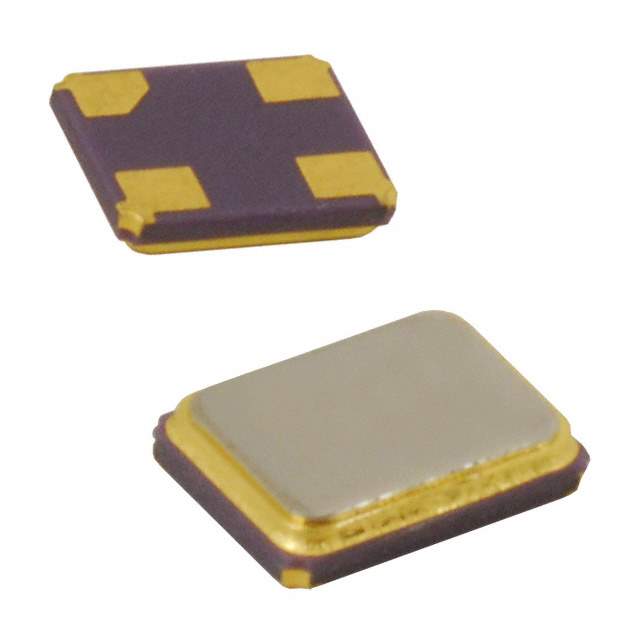

The NDK NX2520SA-32.000M-STD-CSW-2 is a quartz crystal resonator. It is used as a frequency control component in electronic circuits, providing a stable and accurate reference frequency for microprocessors, oscillators, and communication devices. It operates at a frequency of 32.000 MHz.

Applications

• Microcontrollers
• Microprocessors
• Real-time clocks (RTC)
• Communication devices
• Oscillators
• Wireless modules
• Consumer electronics

Features

• Frequency: 32.000 MHz
• Frequency Tolerance: Standard (STD)
• Load Capacitance: CSW-2 (Specific Load Capacitance Value)
• Package: 2.5 x 2.0 mm SMD (Surface Mount Device)
• Operating Temperature Range: Typically -40°C to +85°C
• Frequency Stability: High frequency stability over temperature

Benefits

• Accurate Frequency: Provides a precise and stable frequency reference.
• Small Size: Compact SMD package saves board space.
• High Stability: Maintains stable frequency over temperature variations.
• Reliable Performance: Offers reliable performance in various environmental conditions.
• Easy Integration: Suitable for automated assembly processes.

Additional Details

The NX2520SA-32.000M-STD-CSW-2 is designed for surface mount technology (SMT) assembly. The 2.5 x 2.0 mm package size makes it suitable for high-density PCB designs. The crystal resonator is RoHS compliant, meeting environmental standards. Its stable frequency output is essential for reliable operation of electronic circuits. The specific load capacitance (CSW-2) must be considered when designing the oscillator circuit. The crystal's frequency tolerance and stability are critical parameters for applications requiring precise timing. It is commonly used in various electronic devices, including computers, mobile phones, and industrial equipment.
