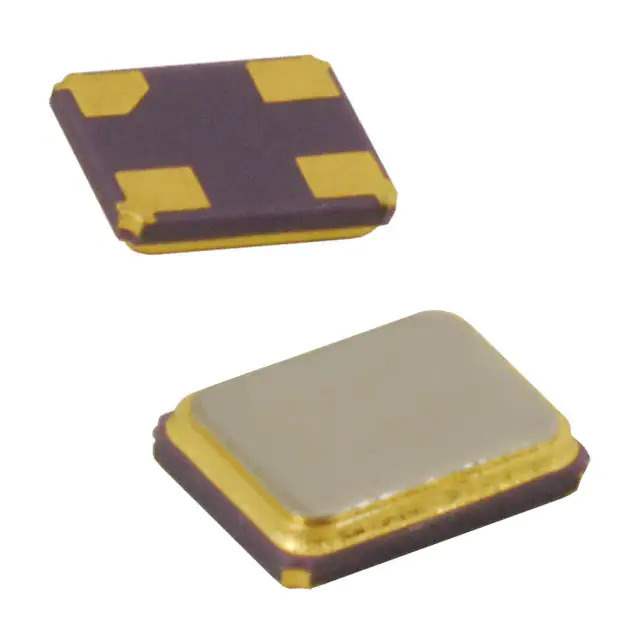

NX2520SA-26MHZ-STD-CSX-1 Real Image
Same model may have multiple batches, images only for reference.

NX2520SA-26MHZ-STD-CSX-1

Part No NX2520SA-26MHZ-STD-CSX-1
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 26.0000MHZ 8PF SMD
Datasheet
NX2520SA-26MHZ-STD-CSX-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK
Series NX2520SA
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 26 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 75°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.022" (0.55mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 843522-NX2520SA-26MHZ-STD-CSX-1
Ultra Librarian 3D Model Ultra Librarian NX2520SA-26MHZ-STD-CSX-1 CAD Model

Description

The NX2520SA-26MHZ-STD-CSX-1 is a 26 MHz crystal in the NX2520SA series manufactured by NDK.

  • Mounting Type: Surface Mount
  • Package Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Seated Height: 0.022" (0.55mm)
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Mode: Fundamental
  • Load Capacitance: 8pF
  • Operating Temperature: -20°C to 75°C
  • Standard Package: 3,000 pcs
  • Application: Oscillators and Resonators
