Same model may have multiple batches, images only for reference.

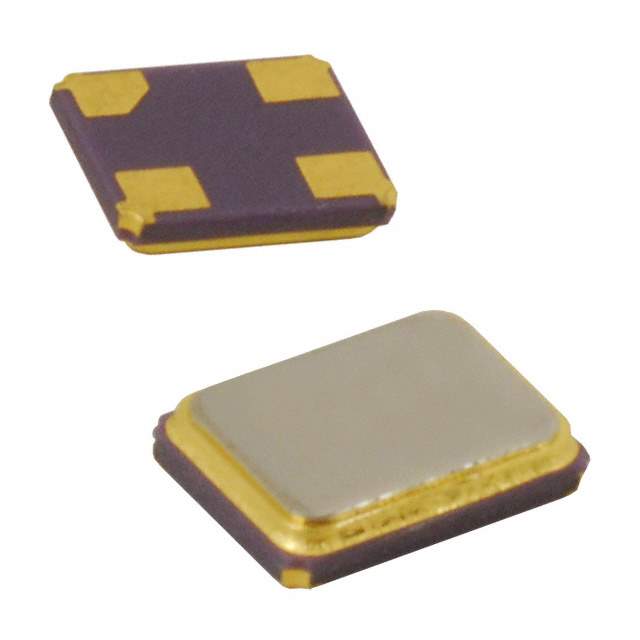

NX2520SA-20.000000MHZ Real Image
Same model may have multiple batches, images only for reference.

NX2520SA-20.000000MHZ

Part No NX2520SA-20.000000MHZ
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 20.0000MHZ 10PF SMD / 20 MHz ±10ppm Crystal 10pF 60 Ohms 4-SMD, No Lead
Datasheet
NX2520SA-20.000000MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX2520SA
Package Tape & Reel
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.026" (0.65mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names 644-1060-2,NX2520SA-20.000000MHZ-STD-CSW-2,644-1060-1,Q4509650,50157488,NX2520SA-20.000M-STD-CSW-2,NX2520SA20000000MHZ,644-1060-6
Standard Package 3,000
Win Source Part Number 995369-NX2520SA-20.000000MHZ
Ultra Librarian 3D Model Ultra Librarian NX2520SA-20.000000MHZ CAD Model

Description

The NX2520SA-20.000000MHZ is a crystal oscillator manufactured by NDK.

  • Type: Crystal Oscillator
  • Frequency: 20MHz
  • Popularity: Low
  • Package: 4-SMD, No Lead
  • Mounting Type: Surface Mount
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
