Same model may have multiple batches, images only for reference.

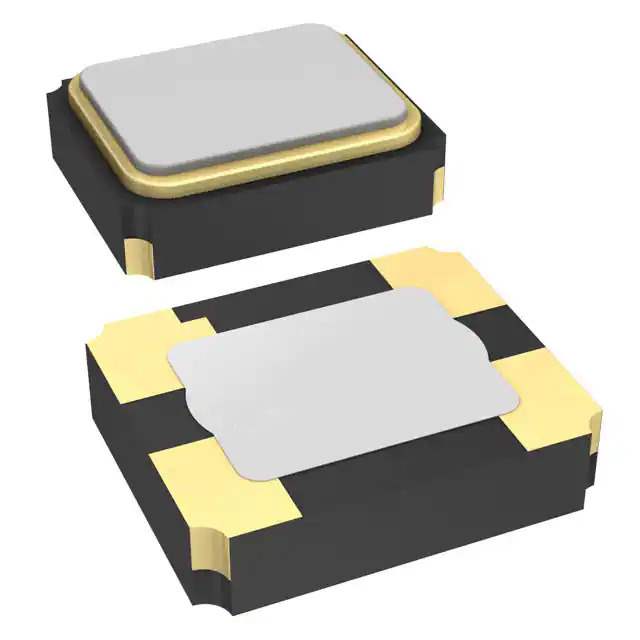

NT2016SA-40M-ENA5065A Real Image
Same model may have multiple batches, images only for reference.

NT2016SA-40M-ENA5065A

Part No NT2016SA-40M-ENA5065A
Manufacturer NDK
Catalog Oscillators
Description XTAL OSC TCXO 40.0000MHZ SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr NDK
Series NT2016SA
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type TCXO
Frequency 40 MHz
Output Clipped Sine Wave
Voltage - Supply 3.3V
Frequency Stability ±2ppm
Temperature Range - Operating -40°C ~ 105°C
Current - Supply (Max) 2mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 2,000 pcs
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 929412-NT2016SA-40M-ENA5065A
Ultra Librarian 3D Model Ultra Librarian NT2016SA-40M-ENA5065A CAD Model

Description

The NT2016SA-40M-ENA5065A is a 40 MHz TCXO in the NT2016SA series and is from NDK.

  • Mounting: Surface mount oscillator
  • Package Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Seated Height: 0.031" (0.80mm)
  • Frequency Stability: ±2ppm
  • Supply Voltage: 3.3V
  • Current Supply: 2mA
  • Output Wave: Clipped sine wave output
  • Operating Temperature Range: -40°C to 105°C
  • Standard Package: 2,000 pcs
  • Commonly Used In: Applications such as precision timing and frequency control in electronic devices
