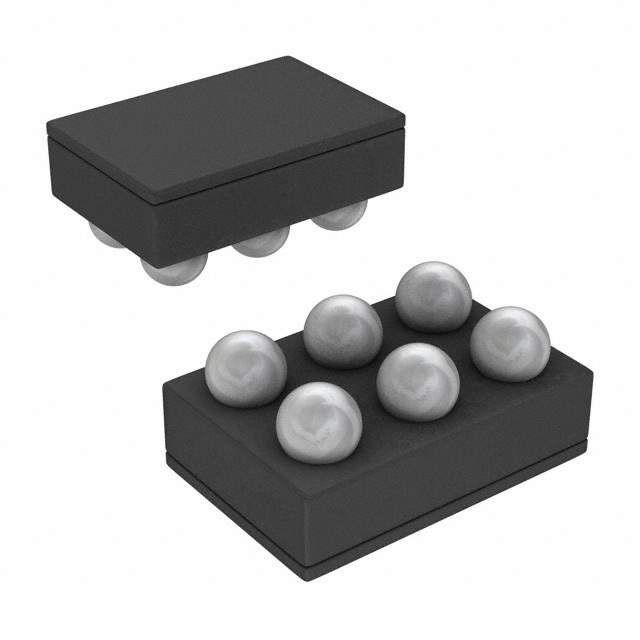

LP5522TMX/NOPB Real Image
Same model may have multiple batches, images only for reference.

LP5522TMX/NOPB

Part No LP5522TMX/NOPB
Manufacturer National Semiconductor (TI)
Catalog PMIC - LED Drivers
Description IC LED DRIVER LINEAR 20MA 6DSBGA / LED Driver IC 1 Output Linear Dimming 20mA 6-DSBGA
Datasheet
LP5522TMX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - LED Drivers
Mfr National Semiconductor
Package Bulk
Type Linear
Internal Switch(s) Yes
Number of Outputs 1
Voltage - Supply (Min) 2.7V
Voltage - Supply (Max) 5.5V
Current - Output / Channel 20mA
Temperature Range - Operating -30°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 6-UFBGA, DSBGA
Supplier Device Package 6-DSBGA
Base Product Number LP5522
HTSUS 0000.00.0000
Other Names TEXTISLP5522TMX/NOPB,2156-LP5522TMX/NOPB
Standard Package 1
Win Source Part Number 1070587-LP5522TMX/NOPB
Ultra Librarian 3D Model Ultra Librarian LP5522TMX/NOPB CAD Model

Description

The LP5522TMX/NOPB is an integrated circuit (IC) manufactured by National Semiconductor.

  • Type: linear
  • Standard Package: 1
  • Voltage Supply: 2.7V to 5.5V
  • Current Output: 20mA per channel
  • Mounting: SMD (SMT)
  • Temperature Range: -30°C to 85°C (TA)
