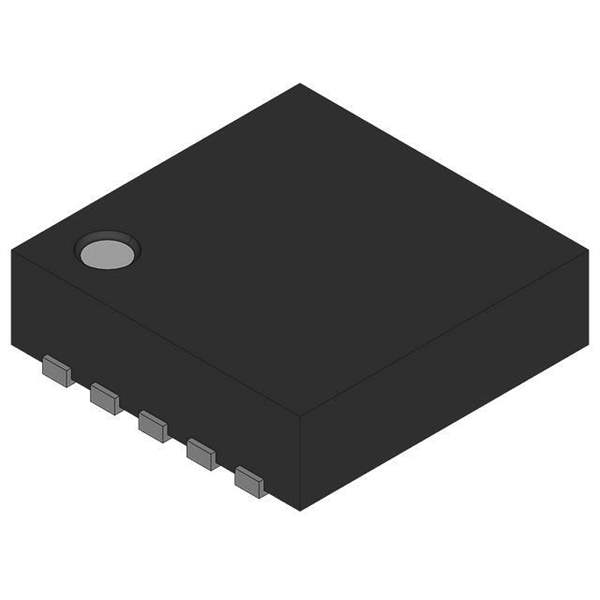

LM5020SD-2 National Semiconductor (TI) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

LM5020SD-2

Part No LM5020SD-2
Manufacturer National Semiconductor (TI)
Catalog Integrated Circuits (ICs)
Description SWITCHING CONTROLLER, CURRENT-MO
Datasheet
LM5020SD-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Output Type Transistor Driver
Function Step-Up/Step-Down
Output Configuration Positive
Topology Boost, Flyback, Forward Converter, SEPIC
Number of Outputs 1
Output Phases 1
Voltage - Supply (Vcc/Vdd) 13V ~ 90V
Frequency - Switching 1MHz
Duty Cycle (Max) 50%
Synchronous Rectifier No
Clock Sync Yes
Control Features Frequency Control, Soft Start
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 10-WDFN Exposed Pad
Supplier Device Package 10-WSON (4x4)
