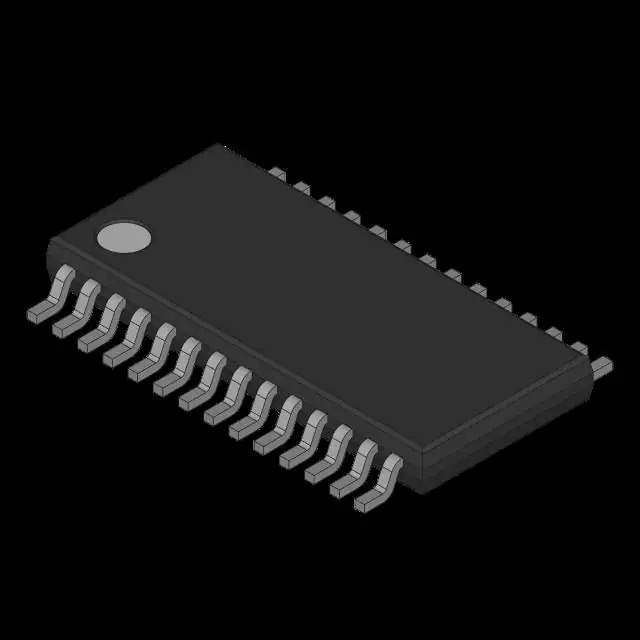

LM3431MHX Real Image
Same model may have multiple batches, images only for reference.

LM3431MHX

Part No LM3431MHX
Manufacturer National Semiconductor (TI)
Catalog PMIC - LED Drivers
Description IC LED DRVR CTRLR PWM 28HTSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr National Semiconductor (TI)
Series Automotive, AEC-Q100
Package Bulk
Product Status Active
Type DC DC Controller
Topology Step-Up (Boost)
Internal Switch(s) No
Number of Outputs 3
Voltage - Supply (Min) 4.5V
Voltage - Supply (Max) 36V
Voltage - Output 5.5V ~ 40V
Current - Output / Channel 200mA
Frequency 1MHz
Dimming Analog, PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 28-HTSSOP
Base Product Number LM3431
Standard Package 247 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 616162-LM3431MHX
Ultra Librarian 3D Model Ultra Librarian LM3431MHX CAD Model

Description

The LM3431MHX is an LED driver from National Semiconductor (TI) that falls under the category of Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers.

  • Type: Step-up (boost) DC-DC controller
  • Application: Backlight
  • Number of Outputs: Three
  • Current Output: 200mA per channel
  • Input Voltage Range: 4.5V to 36V
  • Output Voltage Range: 5.5V to 40V
  • Frequency: 1MHz
  • Dimming: Analog and PWM
  • Mounting: Surface mountable
  • Package: 28-TSSOP with exposed pad
  • Suitable for: Automotive applications
  • Standard: AEC-Q100
  • Temperature Range: -40°C to 125°C
  • Product Status: Active
