The 859938-ADC12DC080CISQE is a high-performance analog to digital converter (ADC) designed for data acquisition applications.

• GPTDescription: With its simultaneous sampling feature, it can accurately convert analog signals from two differential inputs into digital data.
• GPTDescription: The ADC has a 12-bit resolution, providing precise measurement results.
• GPTDescription: It operates @ a sampling rate of 80M samples per second, ensuring fast and accurate data acquisition.
• GPTDescription: The ADC features a pipelined architecture, which improves its performance by reducing latency and increasing throughput.
• GPTDescription: It has two A/D converters, allowing simultaneous conversion of two input signals.
• GPTDescription: The data interface is parallel, enabling easy integration with other digital systems.
• GPTDescription: The voltage supply for the analog section ranges from 2.7V to 3.6V, while the digital section operates @ 2.4V to 3.6V.

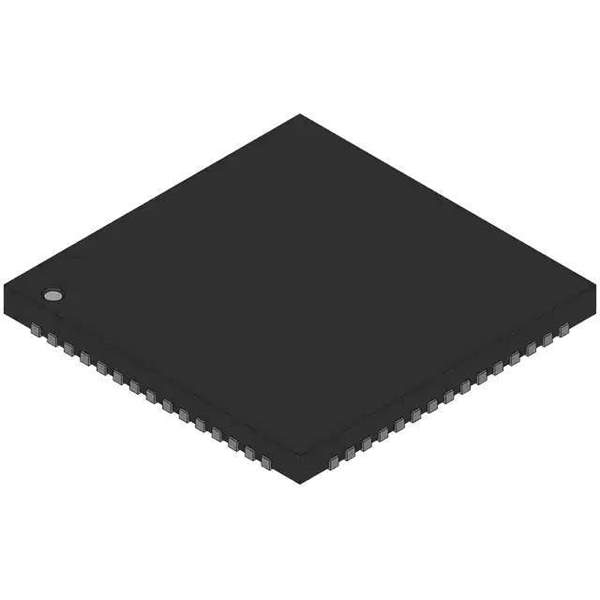

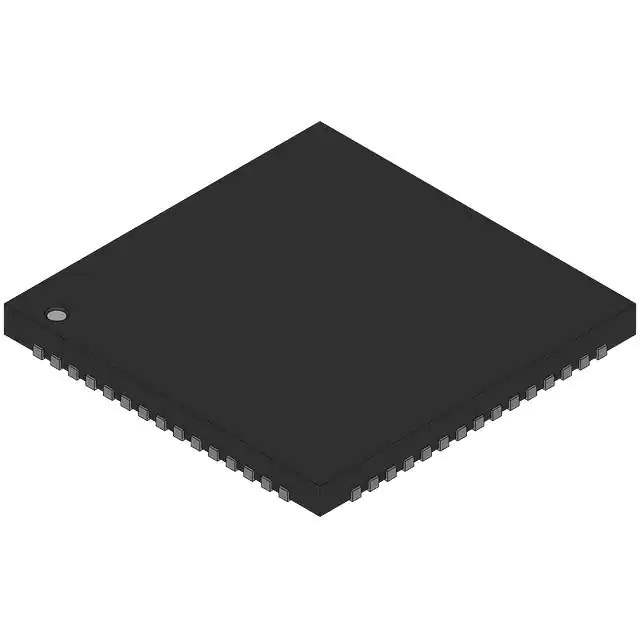

• GPTDescription: The ADC is available in a surface mount package with 60 pins and an exposed pad for efficient heat dissipation.
• GPTDescription: It can withstand a wide temperature range from -40°C to 85°C, making it suitable for various operating conditions.
• GPTDescription: The 859938-ADC12DC080CISQE is an active product from National Semiconductor (TI) and is widely used in applications requiring high-speed and accurate data acquisition.
