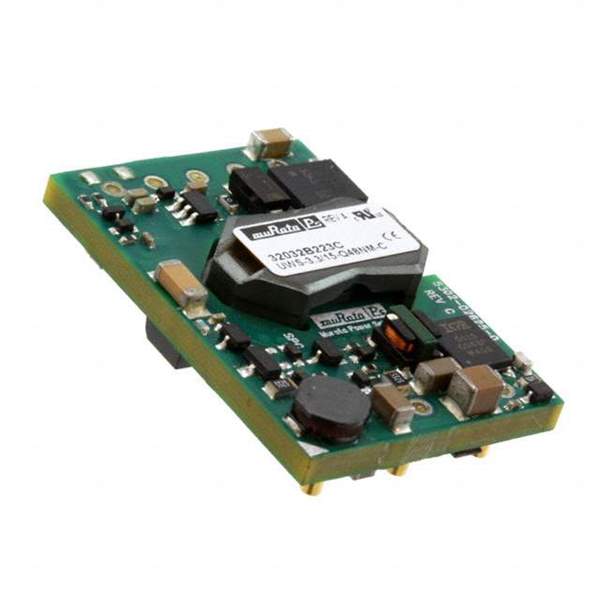

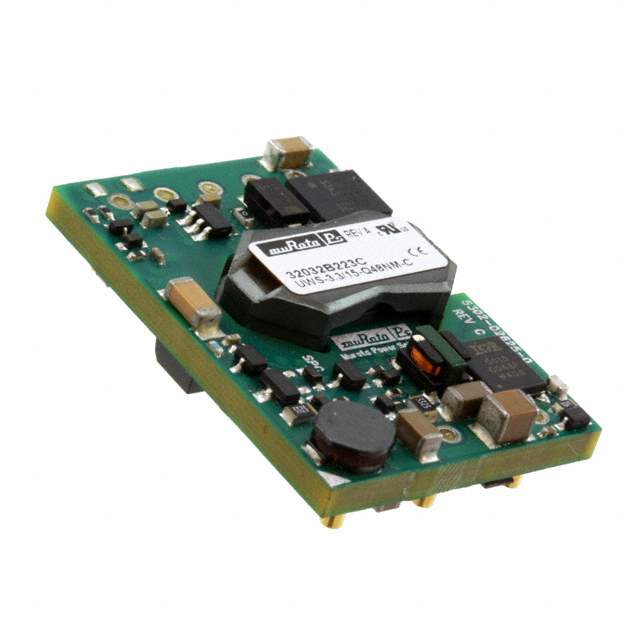

Same model may have multiple batches, images only for reference.

UWS-12/4.5-Q48PM-C

Get a Quote

Part No	UWS-12/4.5-Q48PM-C
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 54W / Isolated Module DC DC Converter 1 Output 12V 4.5A 18V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	UWS
Package	Tape & Reel (TR)
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	4.5A
Power (Watts)	54 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 1/16 Brick
Dimension	1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm)
Control Features	Enable, Active High
Base Product Number	UWS-12
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	200
Win Source Part Number	1041530-UWS-12/4.5-Q48PM-C
Ultra Librarian 3D Model	Ultra Librarian UWS-12/4.5-Q48PM-C CAD Model

Alternative Products

Description

The Murata Power Solutions Inc. UWS-12/4.5-Q48PM-C is an isolated module type electronic component that is designed for use in ITE (Commercial) applications.

Series: UWS
Power Rating: 54W
Voltage Isolation: 2.25kV
Efficiency: 91%
Voltage Input Range: 18V to 75V
Input Current: 4.5A
Voltage Output 1: 12V
Mounting Type: Surface mount technology
Temperature Range: -40°C to 85°C
Dimension: 1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm)
Package: Tape & reel (TR)
Package Description: 8-SMD module, 1/16 Brick
MSL Level: 2 (1 Year)
REACH Status: REACH unaffected
HTSUS: 8504.40.9580
