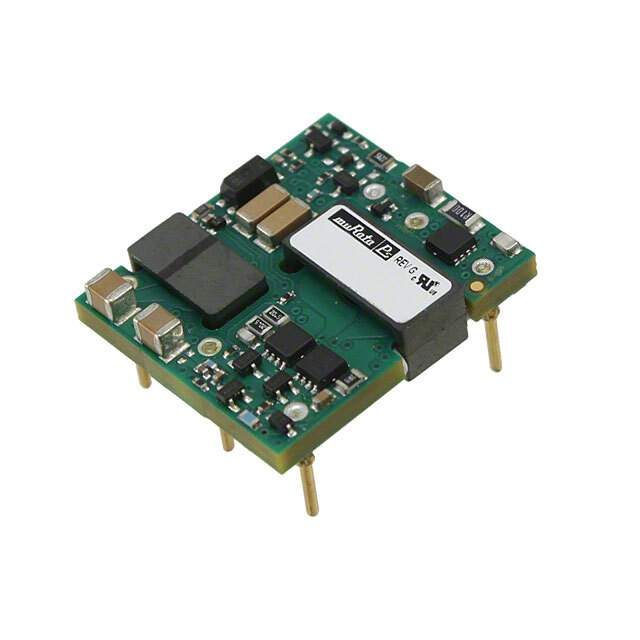

Same model may have multiple batches, images only for reference.

UEI15-033-Q12P-C

Name: UEI15-033-Q12P-C
Brand: Murata Power Solutions Inc.
SKU: 1003325
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UEI15-033-Q12P-C
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 15W / Isolated Module DC DC Converter 1 Output 3.3V 4.5A 9V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	UEI15 (15W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	3.3V
Current - Output (Max)	4.5A
Power (Watts)	15 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	89%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	1.10" L x 0.96" W x 0.32" H (27.9mm x 24.4mm x 8.1mm)
Base Product Number	UEI15-033
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	811-1864-5,UEI15033Q12PC
Standard Package	90
Win Source Part Number	1003325-UEI15-033-Q12P-C
Ultra Librarian 3D Model	Ultra Librarian UEI15-033-Q12P-C CAD Model

Alternative Products

Description

The UEI15-033-Q12P-C is a DC-DC converter module from Murata Power Solutions Inc.

Win Source Part Number: 1003325-UEI15-033-Q12P-C
Series: UEI15 (15W)
Power Output: 15W
Efficiency: 89%
Temperature Range: -40°C to 85°C
Protections: OCP, OTP, OVP, SCP, and UVLO
Applications: Commercial
