Same model may have multiple batches, images only for reference.

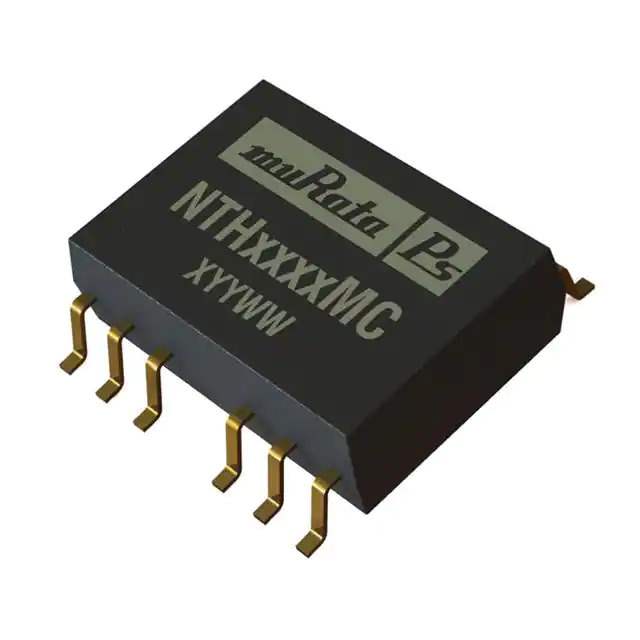

NTH1215MC Real Image
Same model may have multiple batches, images only for reference.

NTH1215MC

Part No NTH1215MC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NTH (2W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 67mA, 67mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 84%
Mounting Type Surface Mount
Package / Case 26-SMD Module, 12 Leads
Size / Dimension 0.70" L x 0.50" W x 0.23" H (17.8mm x 12.7mm x 5.8mm)
Base Product Number NTH12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649809-NTH1215MC
Ultra Librarian 3D Model Ultra Librarian NTH1215MC CAD Model

Description

The NTH1215MC is a 2W isolated module DC-DC converter manufactured by Murata Power Solutions Inc.

  • Series: NTH
  • Designed for: Board mount power supply applications
  • Voltage Isolation: 1 kV
  • Outputs: Two outputs
  • Maximum Output Current: 67mA each
  • Input Voltage Range: Between 10.8V and 13.2V
  • Output Voltages: 15V and -15V
  • Efficiency: 84%
  • Package: Compact 26-SMD module with 12 leads
  • Applications: ITE (Commercial)
  • Operating Temperature Range: -40°C to 85°C
  • Phase: Last time buy
