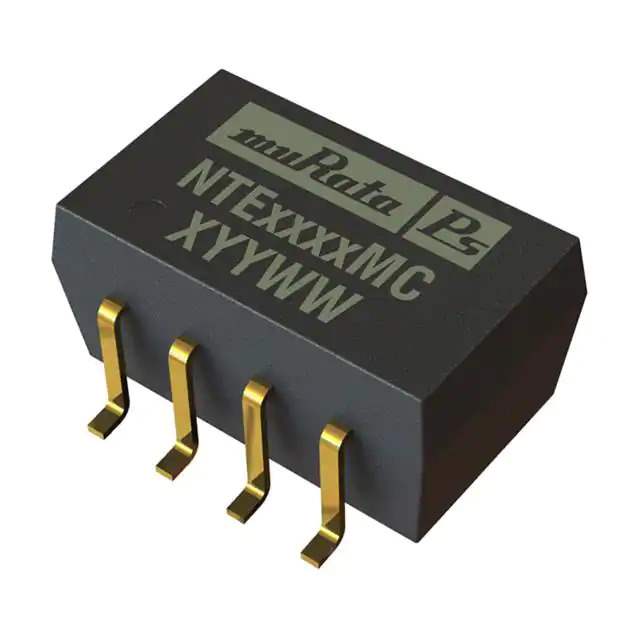

Same model may have multiple batches, images only for reference.

NTE0506MC

Name: NTE0506MC
Brand: Murata Power Solutions Inc.
SKU: 649773
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NTE0506MC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 6V 1W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NTE (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	6V
Current - Output (Max)	167mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	72%
Mounting Type	Surface Mount
Package / Case	14-SMD Module, 8 Leads
Size / Dimension	0.50" L x 0.30" W x 0.26" H (12.7mm x 7.6mm x 6.6mm)
Base Product Number	NTE05
Standard Package	35 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649773-NTE0506MC
Ultra Librarian 3D Model	Ultra Librarian NTE0506MC CAD Model

Alternative Products

Description

The NTE0506MC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

Series: NTE
Application: Power Supplies, Board Mount
Dimensions: 0.50" L x 0.30" W x 0.26" H
Output: Single
Maximum Output Current: 167mA
Input Voltage Range: 4.5V to 5.5V
Output Voltage: 6V
Efficiency: 72%
Mounting Type: Surface Mount
Package: 14-SMD Module, 8 Leads
Operating Temperature: -40°C to 85°C
Status: Active
