Same model may have multiple batches, images only for reference.

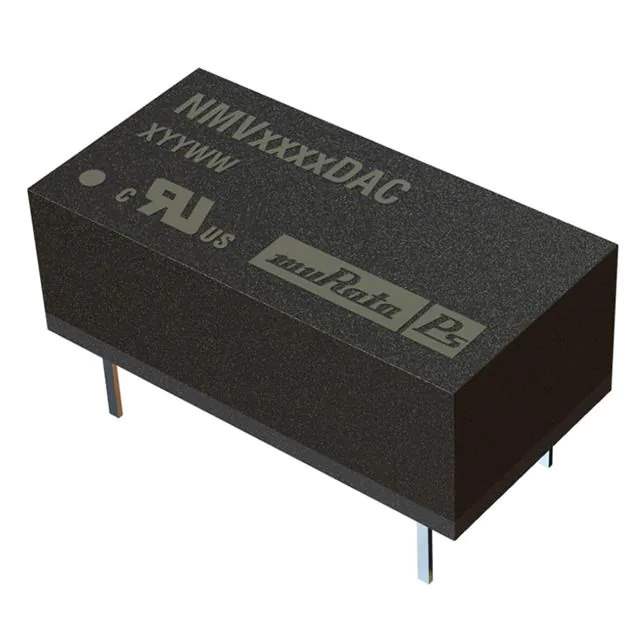

NMV0515DAC Real Image
Same model may have multiple batches, images only for reference.

NMV0515DAC

Part No NMV0515DAC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMV (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Current - Output (Max) 67mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 14-DIP Module, 6 Leads
Size / Dimension 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm)
Base Product Number NMV05
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649209-NMV0515DAC
Ultra Librarian 3D Model Ultra Librarian NMV0515DAC CAD Model

Description

The NMV0515DAC is a 1W isolated module DC-DC converter designed for power supply applications in commercial IT equipment.

  • Size and Mounting: It features a compact size of 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm) and is mounted through hole.
  • Voltage Isolation and Output: The module has a voltage isolation of 3 kV and offers a single output with a maximum output current of 67mA.
  • Input and Output Voltage: The input voltage range is from 4.5V to 5.5V, and the output voltage is 15V.
  • Efficiency: With an efficiency of 78%, this module provides efficient power conversion.
  • Temperature Range: It operates in a temperature range of -40°C to 85°C, ensuring reliable performance in various environments.
  • Manufacturer: The NMV0515DAC is an active product from Murata Power Solutions Inc., a reputable manufacturer in the industry.
