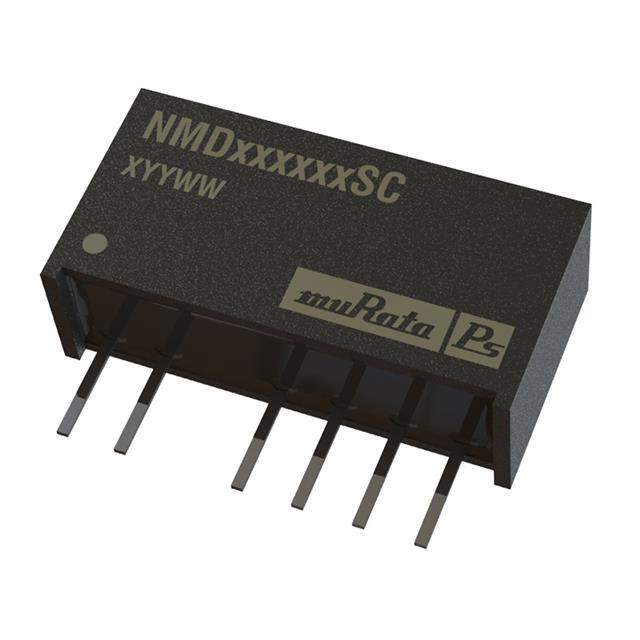

NMD050515SC Real Image
Same model may have multiple batches, images only for reference.

NMD050515SC

Part No NMD050515SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 5-15VOUT SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series NMD
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 15V
Current - Output (Max) 100mA 34mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 7-SIP Module (6 Leads)
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Operating Temperature Range 0°C ~ 70°C
Efficiency 80%
Power (Watts) - Max 1W
Catalog NMD Series
Win Source Part Number 045296-NMD050515SC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NMD050515SC CAD Model

Description

The NMD series DC-DC converter is a 7-SIP module (6 leads) from Murata Power Solutions Inc. that is ideal for use in ITE (Commercial) applications.

  • Outputs: Two.
  • Maximum Output Current: 100mA and 34mA respectively.
  • Input Voltage Range: From 4.5V to 5.5V.
  • Output Voltages: 5V and 15V.
  • Power Rating: 1W.
  • Efficiency: 80%.
  • Voltage Isolation: 1kV (1000V).
  • Operating Temperature Range: 0°C to 70°C.
  • Package Size: 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm).
  • Packaging: Tube.
