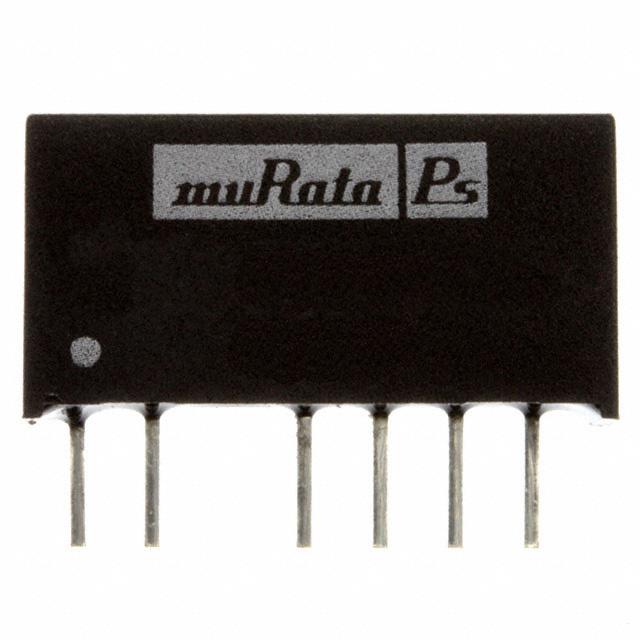

Same model may have multiple batches, images only for reference.
NMD050509SC Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

NMD050509SC

Part No NMD050509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 5-9VOUT SIP
Datasheet
NMD050509SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube/Rail
Type Isolated Module
Number of Outputs 2
Minimum Input Voltage 4.5V
Maximum Input Voltage 5.5V
Nominal Output Voltage 1 5V
Nominal Output Voltage 2 9V
Current - Output (Max) 100mA, 56mA
Power (Watts) 1W
Isolation Voltage 1kV (1000V)
Applications ITE (Commercial)
Temperature Range - Operating 0°C to 70°C
Efficiency 80%
Mounting Through Hole
Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Win Source Part Number 045295-NMD050509S
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian NMD050509SC CAD Model

Description

The NMD050509S is an isolated module type power supply with a maximum output power of 1W from Murata Power Solutions Inc.

  • Packaging: Tube/rail.
  • Application: ITE (Commercial).
  • Mounting Type: Through hole.
  • Outputs: Two.
  • Maximum Current Output: 100mA and 56mA.
  • Efficiency: 80%.
  • Isolation Voltage: 1kV (1000V).
  • Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm).
  • Temperature Range: 0°C to 70°C.
  • Maximum Input Voltage: 5.5V.
  • Minimum Input Voltage: 4.5V.
  • Nominal Output Voltage 1: 5V.
  • Nominal Output Voltage 2: 9V.
  • Nominal Output Voltage 3: Not applicable.
  • Popularity: Medium.
  • Supply and Demand Status: Limited.
