Same model may have multiple batches, images only for reference.

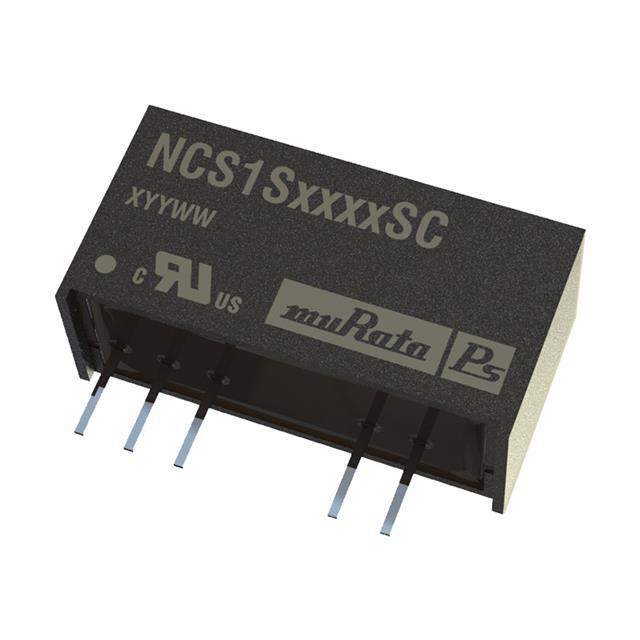

NCS1S2403SC Real Image
Same model may have multiple batches, images only for reference.

NCS1S2403SC

Part No NCS1S2403SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Isolated 1W 4:1 Input Single Output DC/DC Converters
Datasheet
NCS1S2403SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NCS1
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 9V
Voltage Input MAX 36V
Voltage - Output 1 3.3V
Current - Output (Maximum) 303mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features SCP
Operating Temperature Range -40°C ~ 105°C
Efficiency 78.5%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Size 0.86" L x 0.32" W x 0.45" H (21.9mm x 8.2mm x 11.3mm)
Win Source Part Number 1230506-NCS1S2403SC
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Family Name NCS1S2403SC
Introduction Date February 17, 2014
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian NCS1S2403SC CAD Model

Description

The NCS1S2403SC isolated module is designed for ITE (commercial) applications, from Murata Power Solutions Inc.

  • Power: 1W
  • Voltage Isolation: 1kV (1000V)
  • Mounting Type: Through-hole
  • Leads: 5
  • Size: 0.86" L x 0.32" W x 0.45" H (21.9mm x 8.2mm x 11.3mm)
  • Output Voltage: 3.3V
  • Efficiency: 78.5%
  • Number of Outputs: 1
  • Input Voltage Range: 9V to 36V
  • Current Output (Maximum): 303mA
  • Packaging: Tube
  • Family Name: NCS1S2403SC
  • Manufacturer Homepage: www.murata-ps.com
  • Alternative Parts: RK-243.3S/H6, R24P3.3S/X2, and W2403HDC1-G
  • Introduction Date: February 17, 2014
  • Estimated EOL Date: 2025
  • Supply and Demand Status: Limited
  • Category: Power supplies - board mount
