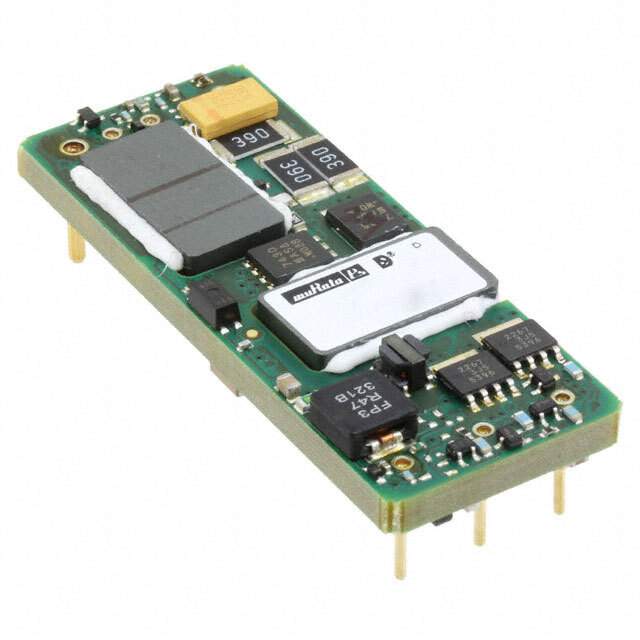

Same model may have multiple batches, images only for reference.

UWE-15/5-Q12P-C

Name: UWE-15/5-Q12P-C
Brand: Murata Power Solutions Inc.
SKU: 1340583
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWE-15/5-Q12P-C
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 75W / Isolated Module DC DC Converter 1 Output 15V 5A 9V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	UWE
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Current - Output (Max)	5A
Power (Watts)	75 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91.5%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/8 Brick
Size / Dimension	2.30" L x 0.90" W x 0.34" H (58.4mm x 22.9mm x 8.6mm)
Control Features	Enable, Active High
Base Product Number	UWE-15
Standard Package	42
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1340583-UWE-15/5-Q12P-C
Ultra Librarian 3D Model	Ultra Librarian UWE-15/5-Q12P-C CAD Model

Alternative Products

Description

The 1340583-UWE-15/5-Q12P-C isolated module is designed for use in ITE (Commercial) applications from Murata Power Solutions.

Application: ITE (Commercial)
Function: Isolated Module
Power: 75W
Outputs: 1
Output Current (Max): 5A
Voltage - Input (Min): 9V
Voltage - Input (Max): 36V
Voltage - Output: 15V
Efficiency: 91.5%
Mounting Type: Through Hole
Size / Dimension: 2.30" L x 0.90" W x 0.34" H (58.4mm x 22.9mm x 8.6mm)
Package / Case: 8-DIP Module, 1/8 Brick
Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO
