Same model may have multiple batches, images only for reference.

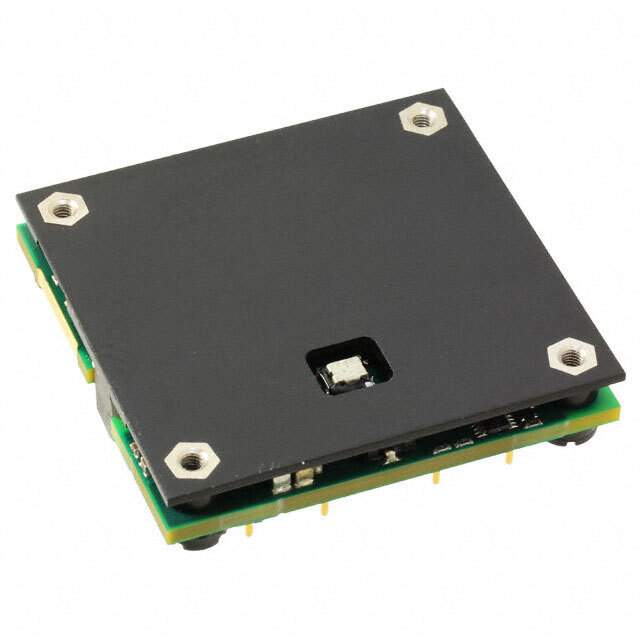

PAH-53/8.5-D48PB-C Real Image
Same model may have multiple batches, images only for reference.

PAH-53/8.5-D48PB-C

Part No PAH-53/8.5-D48PB-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 53V 450W / Isolated Module DC DC Converter 1 Output 53V 8.5A 36V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series PAH (450W)
Package Tray
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 53V
Current - Output (Max) 8.5A
Power (Watts) 450 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 94%
Mounting Type Through Hole
Package / Case 9-DIP Module, 1/2 Brick
Size / Dimension 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm)
Control Features Enable, Active High
Base Product Number PAH-53
Standard Package 36
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1352253-PAH-53/8.5-D48PB-C
Ultra Librarian 3D Model Ultra Librarian PAH-53/8.5-D48PB-C CAD Model

Description

The PAH (450W) series isolated module DC-DC converter is a high-performance power supply that is ideal for use in ITE (Commercial) applications.

  • Control Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO
  • Maximum Output Current: 8.5A
  • Input Voltage: 36V to 75V
  • Output Voltage: 53V
  • Efficiency: 94%
  • Mounting: Through Hole
  • Package Size: 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm)
  • Package: Tray
  • Voltage Isolation: 2.25 kV
  • Output: Single
  • MSL Level: 1 (Unlimited)
  • REACH: REACH Unaffected
  • HTSUS: 8504.40.9580
  • Manufacturer: Murata Power Solutions Inc.
  • Status: Last Time Buy
