Same model may have multiple batches, images only for reference.

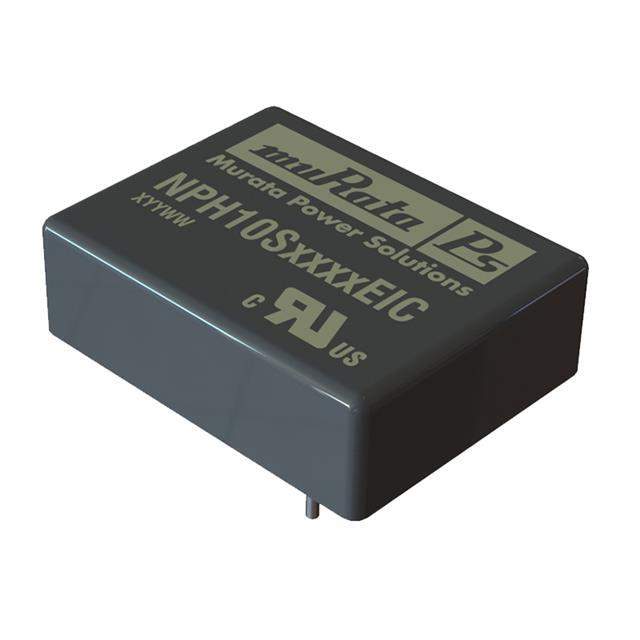

NPH10S2405EIC Real Image
Same model may have multiple batches, images only for reference.

NPH10S2405EIC

Part No NPH10S2405EIC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5.1V 10W / Isolated Module DC DC Converter 1 Output 5.1V 1.96A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5.1V
Current - Output (Max) 1.96A
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 110°C
Efficiency 83%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.26" L x 0.98" W x 0.39" H (32.0mm x 24.9mm x 9.9mm)
Base Product Number NPH10S24
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number Q4487931AAA,811-1625-5
Standard Package 15
Win Source Part Number 1335296-NPH10S2405EIC
Ultra Librarian 3D Model Ultra Librarian NPH10S2405EIC CAD Model

Description

Murata Power Solutions Inc. presents an isolated module component, 1335296-NPH10S2405EIC, which is a DC DC converter from the power supply board mount category.

  • Voltage Isolation: 1.5kV
  • Efficiency: 83%
  • Current Output: 1.96A
  • Power: 10W
  • Voltage Input: 18V to 36V
  • Temperature Range: -40°C to 110°C
  • Package: 6-DIP module
  • Package Quantity: 15
  • Application: ITE (Commercial)
