Same model may have multiple batches, images only for reference.

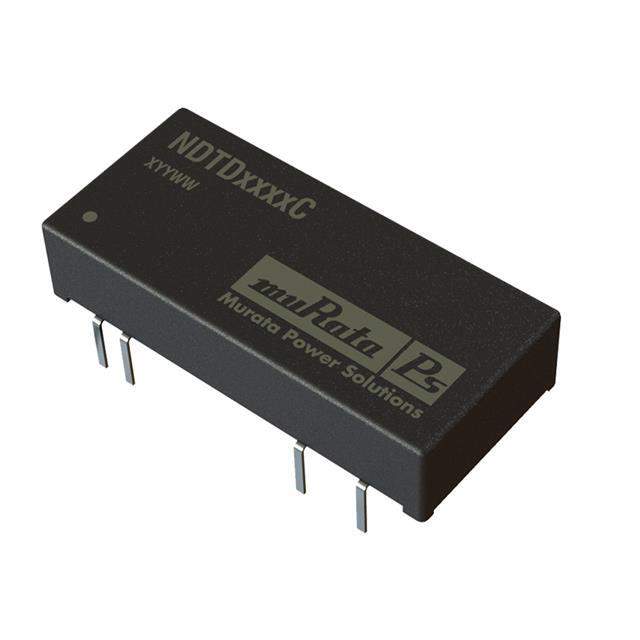

NDTD0512C Real Image
Same model may have multiple batches, images only for reference.

NDTD0512C

Part No NDTD0512C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 4.5V - 9V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 76%
Mounting Through Hole
Case / Package 24-DIP Module (600 mil, 8 Leads)
Size / Dimension 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm)
Base Product Number NDTD05
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-1369-5
Standard Package 15
Win Source Part Number 1335257-NDTD0512C
Ultra Librarian 3D Model Ultra Librarian NDTD0512C CAD Model

Description

The TDTD0512C is an isolated module DC-DC converter manufactured by Murata Power Solutions Inc.

  • Packaging: Tube
  • Mounting: Through hole
  • Power: 3W
  • Voltage Isolation: 1kV
  • Outputs: Two
  • Current Output (Max): 125mA, 125mA
  • Voltage Input (Min): 4.5V
  • Voltage Input (Max): 9V
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Efficiency: 76%
  • Application: ITE (Commercial)
  • Ideal for: Use in power supplies - board mount applications
