Same model may have multiple batches, images only for reference.

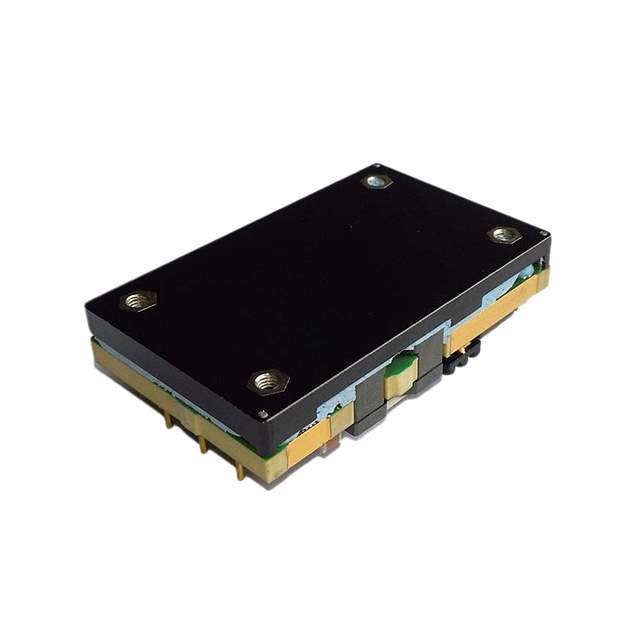

DRQ-8/100-L48NB-C Real Image
Same model may have multiple batches, images only for reference.

DRQ-8/100-L48NB-C

Part No DRQ-8/100-L48NB-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 8V 800W / Isolated Module DC DC Converter 1 Output 8V 100A 36V - 60V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series DRQ-8/100-L48NBxxxx-C (800W)
Package Tray
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 60V
Voltage - Output 1 8V
Current - Output (Max) 100A
Power (Watts) 800 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Baseplate, Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 95.8%
Mounting Type Through Hole
Package / Case Quarter Brick
Size / Dimension 2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm)
Supplier Device Package Quarter Brick
Base Product Number DRQ-8
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1351293-DRQ-8/100-L48NB-C
Ultra Librarian 3D Model Ultra Librarian DRQ-8/100-L48NB-C CAD Model

Description

The Murata Power Solutions DRQ-8/100-L48NBxxxx-C (800W) isolated module is a high-quality module with a power of 800W and a voltage isolation of 1.5 kV.

  • Power: 800W
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 1
  • Current Output (Max): 100A
  • Voltage Input (Min): 36V
  • Voltage Input (Max): 60V
  • Voltage Output 1: 8V
  • Efficiency: 95.8%
  • Mounting Type: Through-Hole
  • Package/Case: Quarter Brick
  • Operating Temperature: -40°C ~ 85°C (with derating)
  • Status: Obsolete
  • Supply and Demand Status: Limited
