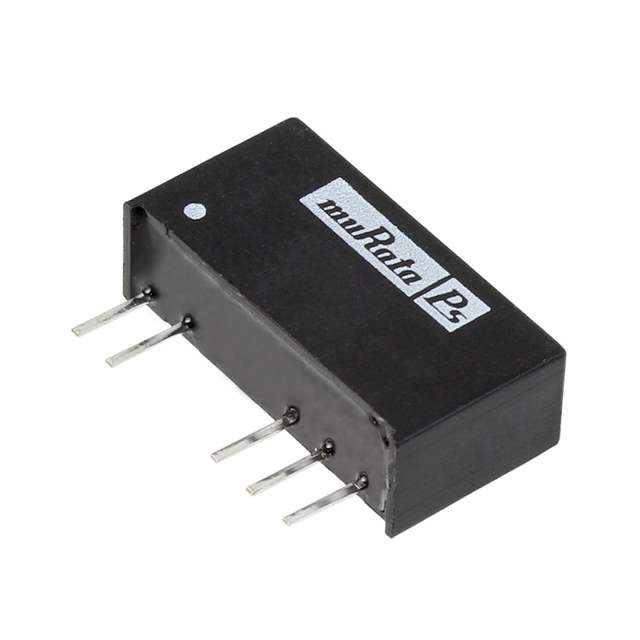

HPR417C Real Image
Same model may have multiple batches, images only for reference.

HPR417C

Part No HPR417C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC +/-15V +/-25MA SIP
Datasheet
HPR417C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube/Rail
Status Active
Type Isolated Module
Number of Outputs 2
Minimum Input Voltage 13.5V
Maximum Input Voltage 16.5V
Nominal Output Voltage 1 15V
Nominal Output Voltage 2 -15V
Current - Output (Max) 25mA, 25mA
Power (Watts) 750mW
Isolation Voltage 3kV (3000V)
Applications ITE (Commercial)
Temperature Range - Operating -40°C to 100°C
Efficiency 79%
Mounting Through Hole
Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Win Source Part Number 204902-HPR417
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HPR417C CAD Model

Description

The HPR417 is an isolated module type power supply from Murata Power Solutions Inc. It has a packaging of tube/rail and is designed for ITE (Commercial) applications. The module has a dimension of 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) and has a maximum input voltage of 16.5V and minimum input voltage of 13.5V. The nominal output voltage 1 is 15V and nominal output voltage 2 is -15V. It has a popularity of medium and a supply and demand status of limited.
