Same model may have multiple batches, images only for reference.

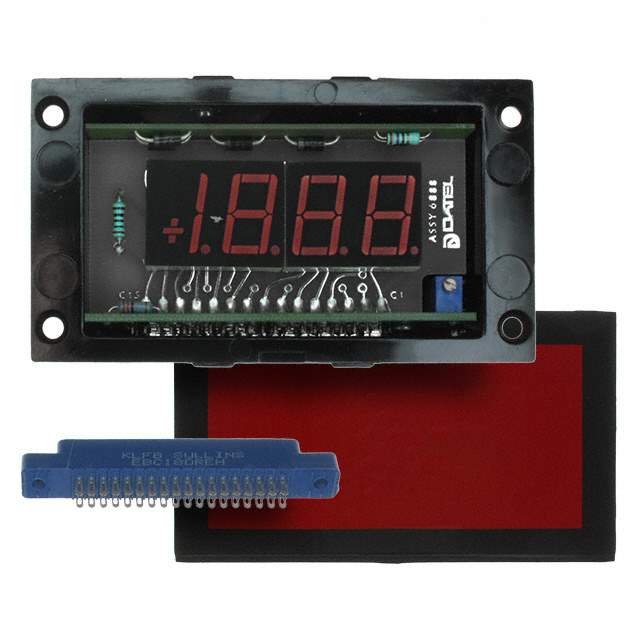

DM-3100B-1 Real Image
Same model may have multiple batches, images only for reference.

DM-3100B-1

Part No DM-3100B-1
Manufacturer Murata Power Solutions Inc.
Catalog Panel Meters
Description Displays, AC-Powered, 3 Digit LED Digital Panel Meter / VOLTMETER 1.999VDC LED PANEL MT
Datasheet
DM-3100B-1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Industrial Controls
Manufacturer Murata Power Solutions Inc.
Series DM
Part Status Obsolete(EOL)
Type Voltage (Voltmeter)
Measuring Range ±1.999VDC
Display Type LED - Red Characters
Number Of Characters Per Row 3.5
Display Characters - Height 0.560" (14.20mm)
Operating Supply Voltage 115VAC, 230VAC
Panel Cutout Dimensions Rectangular - 77.80mm x 46.00mm
Mounting Panel Mount
Termination Style Card Edge
Operating Temperature Range 0°C ~ 50°C
Weight 0.313 lb (141.97g)
Win Source Part Number 785018-DM-3100B-1
Popularity Medium
Supply and Demand Status Limited
Introduction Date March 03, 2010
Country of Origin United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian DM-3100B-1 CAD Model

Description

The Murata Power Solutions Inc. 785018-DM-3100B-1 is an electronic component designed for voltage (voltmeter) measurement. This obsolete (EOL) component has the following specifications:

  • Termination Style: Card Edge
  • Mounting: Panel Mount
  • Operating Temperature: 0°C to 50°C
  • Weight: 0.313 lb (141.97g)
  • Supply and Demand Status: Limited
