Same model may have multiple batches, images only for reference.

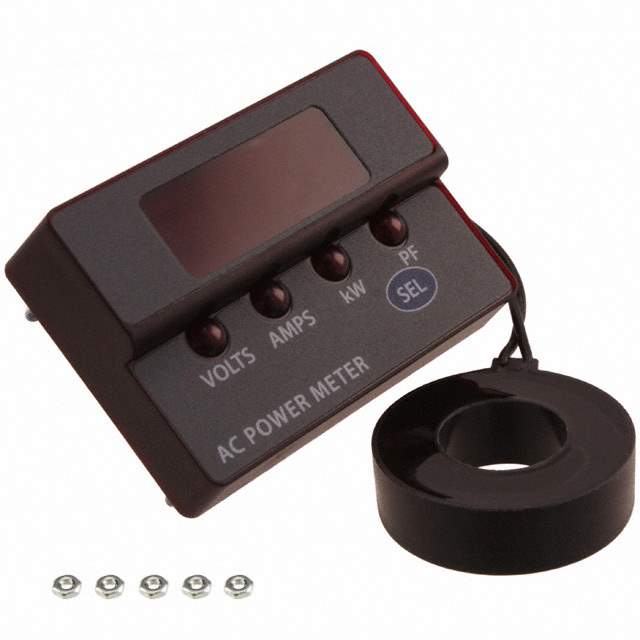

ACM20-4-AC1-R-C Real Image
Same model may have multiple batches, images only for reference.

ACM20-4-AC1-R-C

Part No ACM20-4-AC1-R-C
Manufacturer Murata Power Solutions Inc.
Catalog Panel Meters
Description MULTI METER 0-100A LED PNL MOUNT  /  Multifunction Meter (Current, Voltage, Wattage) LED - Red Characters Display Panel Mount - Surface
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Panel Meters
Mfr Murata Power Solutions Inc.
Series ACM20
Package Box
Type Multifunction Meter (Current, Voltage, Wattage)
Measuring Range 0 ~ 100A
Display Type LED - Red Characters
Number Of Characters Per Row 4
Display Characters - Height 0.360" (9.14mm)
Voltage - Supply 85 ~ 264VAC
Panel Cutout Dimensions Rectangular - 36.22mm x 22.10mm
Mounting Type Panel Mount - Surface
Termination Style Screw Terminal
Features Built In Current Transformer (Primary)
Temperature Range - Operating 0°C ~ 60°C
Weight 0.097 lb (44 g)
Base Product Number ACM20-4-AC1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Names ACM204AC1RC,811-2203
Standard Package 12
Win Source Part Number 1211064-ACM20-4-AC1-R-C
Ultra Librarian 3D Model Ultra Librarian ACM20-4-AC1-R-C CAD Model

Description

The Murata Power Solutions ACM20 Multifunction Meter is an ideal solution for industrial automation and control panel meters. Bold the product name ACM20 Multifunction Meter and manufacturer Murata Power Solutions.

  • Features: Built-in current transformer (primary)
  • Measurements: Current, Voltage, Wattage
  • Termination Style: Screw Terminal
  • Display: LED display with red characters
  • Measuring Range: 0-100A
  • Voltage Supply: 85-264VAC
  • Panel Cutout Dimensions: Rectangular - 36.22mm x 22.10mm
  • Mounting Type: Panel Mount - Surface
  • Temperature Range: 0°C to 60°C
  • EAR99 Compliant: Yes
  • REACH Unaffected: Yes
  • HTSUS: 9030.33.3800
