Same model may have multiple batches, images only for reference.

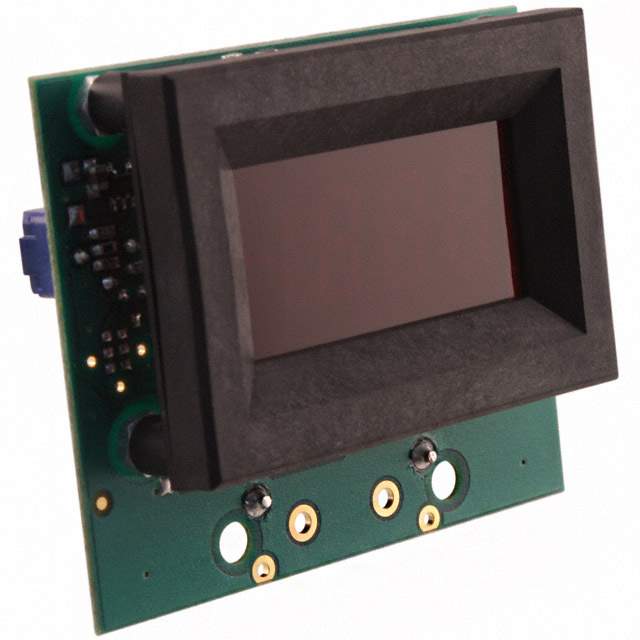

ACA-20RM-1-AC3-RL-C Real Image
Same model may have multiple batches, images only for reference.

ACA-20RM-1-AC3-RL-C

Part No ACA-20RM-1-AC3-RL-C
Manufacturer Murata Power Solutions Inc.
Catalog Panel Meters
Description True-RMS-AC Ammeters with Built-in CT | AMMETER 0-1.999A LED PANEL MOUNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Industrial Automation and Controls
Manufacturer Murata Power Solutions Inc.
Type Current (Ammeter)
Measuring Range 0 ~ 1.999A
Display Type LED - Red Characters
Number Of Characters Per Row 3.5
Display Characters - Height 0.370" (9.40mm)
Supply Voltage (V) 85 ~ 140VAC
Panel Cutout Dimensions Rectangular - 33.93mm x 21.29mm
Mounting Style Panel Mount - Bezel
Termination Style Screw Terminal
Features Built In Current Transformer (Primary)
Temperature Range - Operating 0°C ~ 60°C
Weight 0.068 lb (30.84g)
Manufacturer Pack Quantity 12
MSL Level 1 (Unlimited)
Win Source Part Number 1135128-ACA-20RM-1-AC3-RL-C
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Sensing & Instrumentation
Ultra Librarian 3D Model Ultra Librarian ACA-20RM-1-AC3-RL-C CAD Model

Description

The Murata Power Solutions Inc. 1135128-ACA-20RM-1-AC3-RL-C Current (Ammeter) is a highly reliable electronic component used in industrial automation and controls.

  • Features: Built-in current transformer (primary) and a screw terminal for easy connection
  • Mounting: Panel mount-bezel
  • Panel Cutout Dimensions: 33.93mm x 21.29mm
  • Display: LED display with red characters
  • Characters Per Row: 3.5
  • Display Character Height: 0.370" (9.40mm)
  • Measuring Range: 0 ~ 1.999A
  • Operating Temperature: 0°C ~ 60°C
  • Applications: Computers & computer peripherals, communications & networking, and sensing & instrumentation
  • Manufacturer Pack Quantity: 12
  • MSL Level: 1 (Unlimited)
  • Supply Voltage: 85 ~ 140VAC
