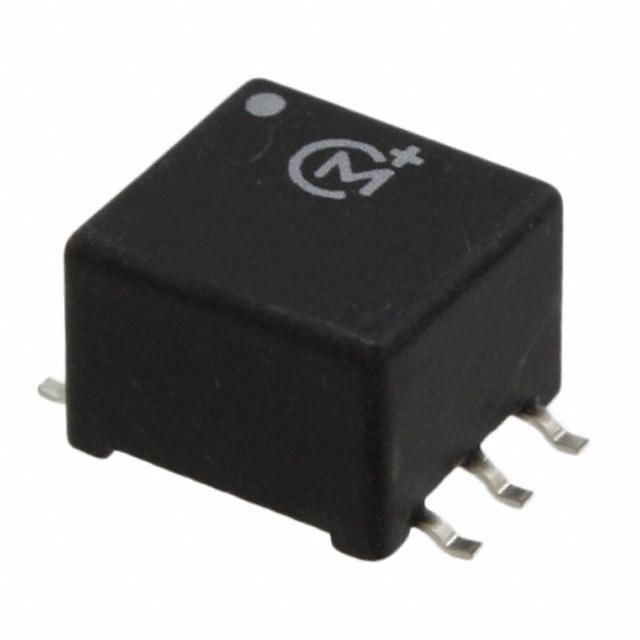

78604/16JC-R

Part No 78604/16JC-R
Manufacturer Murata Power Solutions Inc.
Catalog Pulse Transformers
Description PULSE XFMR 2:1 3.3MH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Murata Power Solutions Inc.
Series 786J
Package Tape & Reel
Product Status Active
Transformer Type General Purpose
Inductance 3.3mH
ET (Volt-Time) 28VµS
Mounting Type Surface Mount
Size / Dimension 0.375" L x 0.354" W (9.52mm x 9.00mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating 0°C ~ 70°C
Base Product Number 78604
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 29435-78604/16JC-R
Ultra Librarian 3D Model Ultra Librarian 78604/16JC-R CAD Model

Description

Description:

The 78604/16JC-R component is engineered to deliver outstanding performance in the most demanding environments. It provides enduring reliability and efficiency.

Features and Benefits:

  • Robust design for increased lifespan
  • High-temperature tolerance for extreme conditions
  • Energy-saving properties reduce operational costs
  • Simplified integration into different systems

Applications/Projects:

  • Renewable energy – optimizing system performance
  • Computing – enhancing processing speed and efficiency
  • Transportation – improving electronic control units
  • Data centers – supporting high-performance servers

Additional Details:

Designed for durability, the 78604/16JC-R is perfect for applications requiring consistent performance. Its energy-efficient design helps lower the carbon footprint of systems.
