Same model may have multiple batches, images only for reference.

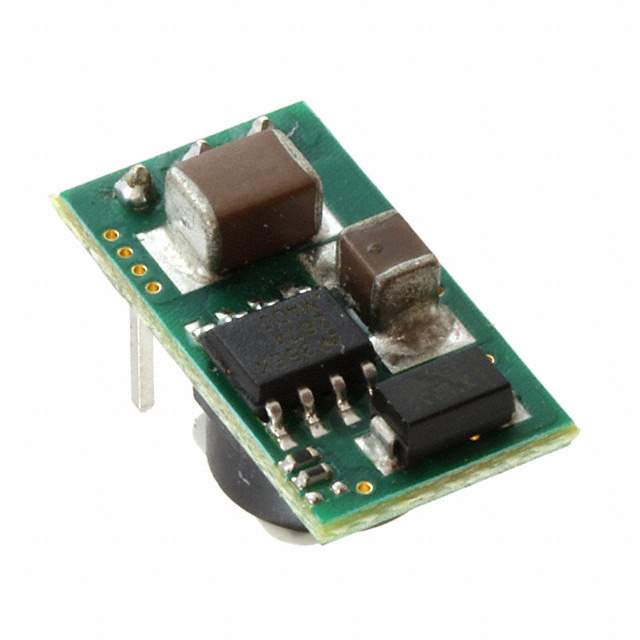

7805SRH-C Real Image
Same model may have multiple batches, images only for reference.

7805SRH-C

Part No 7805SRH-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W
Datasheet
7805SRH-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 35 Weeks
Features Linear Regulator Replacement DC DC Converter Output 5V - - 500mA 7.5V - 36V Input
Manufacturer Murata Power Solutions Inc.
Series 78SR
Package Box
Operating Temperature Range -40°C ~ 70°C
Mounting Through Hole
Package 3-SIP Module
Family Name 78
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 7805SRHC, 811-2644
Quantity per package 100
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858207-7805SRH-C
Ultra Librarian 3D Model Ultra Librarian 7805SRH-C CAD Model

Description

Murata Power Solutions Inc. presents the 78SR series linear regulator replacement DC DC converter.

  • Module: 3-SIP
  • Package: Box
  • Mounting: Through-Hole
  • Operating Temperature Range: -40°C to 70°C
  • Output: 5V, 500mA
  • Input Range: 7.5V to 36V
  • Family: 78
  • Category: Power Supplies - Board Mount
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 35 weeks
  • Quantity per Package: 100
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8504.40.9580
