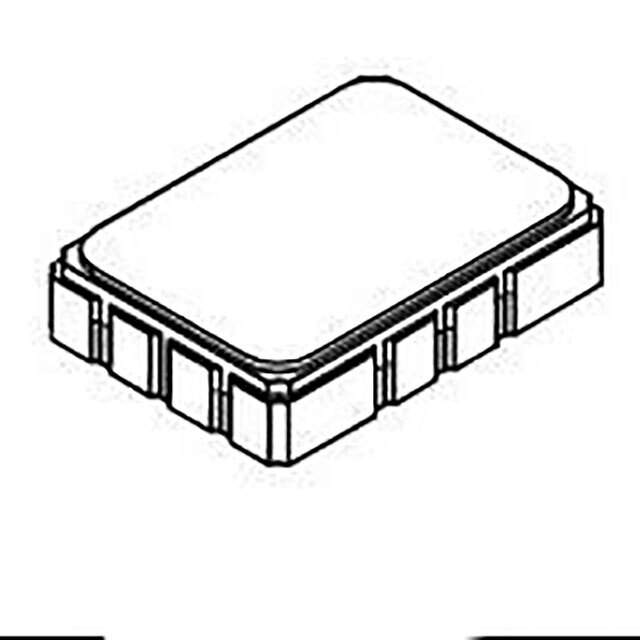

SF1140B-2 Real Image
Same model may have multiple batches, images only for reference.

SF1140B-2

Part No SF1140B-2
Manufacturer Murata Electronics North America
Catalog SAW Filters
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr Murata Electronics
Package Tape & Reel (TR)
Product Status Obsolete
Frequency - Center 75MHz
Bandwidth 4.2MHz
Insertion Loss 11dB
Applications SDARS
Mounting SMD (SMT)
Package / Case 10-SMD, No Lead
Height (Max) 0.079" (2.00mm)
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Base Product Number SF11
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 1275891-SF1140B-2
Ultra Librarian 3D Model Ultra Librarian SF1140B-2 CAD Model

Description

The Murata Electronics SF1140B-2 is a surface acoustic wave (SAW) filter that is designed for SDARS applications.

  • Bandwidth: 4.2MHz
  • Insertion Loss: 11dB
  • Technology: Surface mount technology (SMT)
  • Height: 0.079 inches (2.00mm)
  • Dimension: 0.276 inches L x 0.197 inches W (7.00mm x 5.00mm)
  • Package: Tape and reel
  • Standard Package: 500
