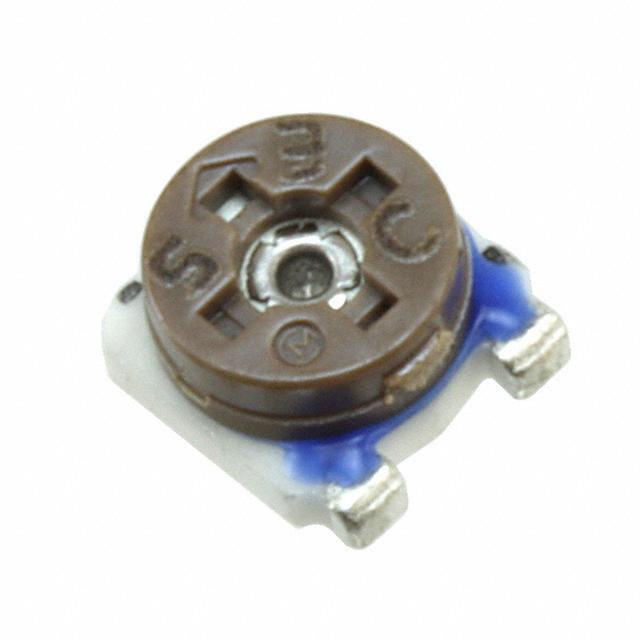

The PVM4A203C01R00 is a Murata Electronics North America product, specifically a trimming potentiometer designed for precise resistance adjustment within electronic circuits. This type of potentiometer allows for fine-tuning of voltage or current in a circuit, making it suitable for calibration and adjustment applications. The PVM4A series are commonly used in various electronic devices for their stability and compact size.

Applications:

• Calibration of sensors and transducers
• Adjustment of audio equipment levels (e.g., in mixers or amplifiers)
• Fine-tuning of power supply output voltages
• Control of motor speeds in small robotic systems
• Setting reference voltages in analog control circuits

Features:

• Panel mount design for easy accessibility
• High precision adjustment
• Excellent stability and reliability in varying conditions
• Small form factor for dense circuit board layouts
• Wide operating temperature range

Benefits:

• Enables accurate and precise calibration of electronic systems
• Guarantees consistent performance across different environmental conditions
• Offers a cost-effective solution for electronic parameter fine-tuning
• Streamlines circuit design and minimizes component count
• Improves overall electronic device performance and reliability

Additional Details:

The PVM4A203C01R00 typically utilizes a carbon composition resistive element, offering a good compromise between cost and performance. Its resistance value is 20 kOhms. The 'PVM4A' series denotes specific mechanical and mounting characteristics. Refer to Murata's datasheet for detailed specifications, including resistance tolerance, power rating, and temperature coefficient. Proper soldering techniques are crucial to maintaining the potentiometer's long-term reliability.
