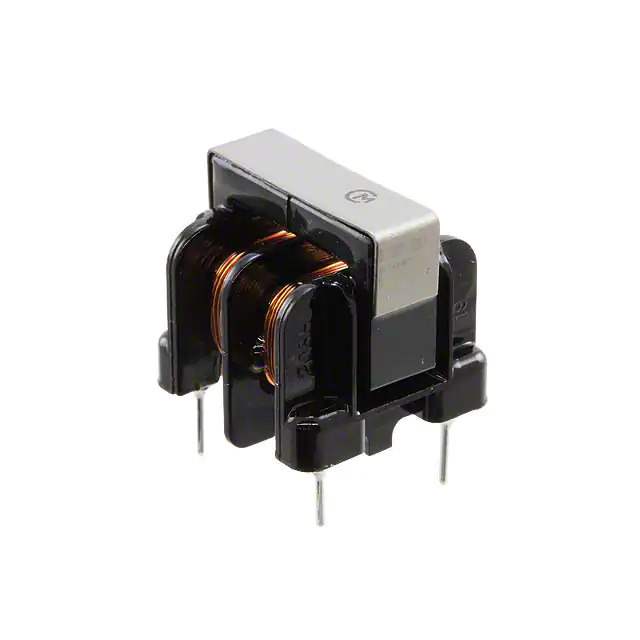

PLA10AN2030R5R2B Real Image
Same model may have multiple batches, images only for reference.

PLA10AN2030R5R2B

Part No PLA10AN2030R5R2B
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 500MA 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Murata Electronics North America
Series PLA10
Package Bulk
Product Status Obsolete
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 1.8Ohm
Voltage Rating - DC 300V
Temperature Range - Operating -25°C ~ 60°C
Mounting Type Through Hole
Size / Dimension 0.709" L x 0.630" W (18.00mm x 16.00mm)
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number PLA10AN
Standard Package 1,260 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 655945-PLA10AN2030R5R2B
Ultra Librarian 3D Model Ultra Librarian PLA10AN2030R5R2B CAD Model

Description

The PLA10AN2030R5R2B is a common mode choke filter designed for power line applications.

  • Series: PLA10
  • Manufacturer: Murata Electronics North America
  • Status: Obsolete
  • Mounting Type: Through-Hole
  • Package Size: 0.709" L x 0.630" W (18.00mm x 16.00mm)
  • Height: 0.689" (17.50mm)
  • Current Rating: 500mA (Maximum)
  • DC Resistance: 1.8Ohm
  • Voltage Rating: 300V
  • Temperature Range: -25°C to 60°C
  • REACH Compliant: Yes
  • ECCN: EAR99
