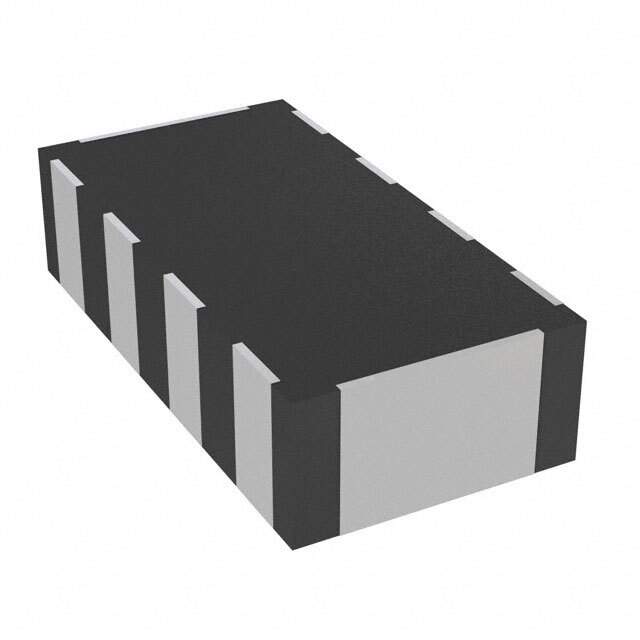

NFA31GD1014704D Real Image
Same model may have multiple batches, images only for reference.

NFA31GD1014704D

Part No NFA31GD1014704D
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC 47 OHM/100PF SMD
Datasheet
NFA31GD1014704D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Type Low Pass
Filter Order 1st
Technology RC
Number of Channels 4
Resistance - Channel (Ohms) 47
Current 20mA
Values R = 47 Ohms, C = 100pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 6V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.039" (1.00mm)
Win Source Part Number 025223-NFA31GD1014704D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NFA31GD1014704D CAD Model

Description

This Murata Electronics North America low pass filter is a general-purpose component that is perfect for a variety of applications.

  • Manufacturer: Murata Electronics North America
  • Voltage Rating: 6V
  • Current: 20mA
  • Number of Channels: Four
  • Resistance: 47 Ohms
  • Filter Order: 1st
  • Center/Cutoff Frequency: Not specified
  • Mounting Type: SMD (SMT)
  • Height: 0.039" (1.00mm)
  • Attenuation Value: Not specified
  • Technology: RC
  • Values: R = 47 Ohms, C = 100pF
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Supply and Demand Status: Limited
