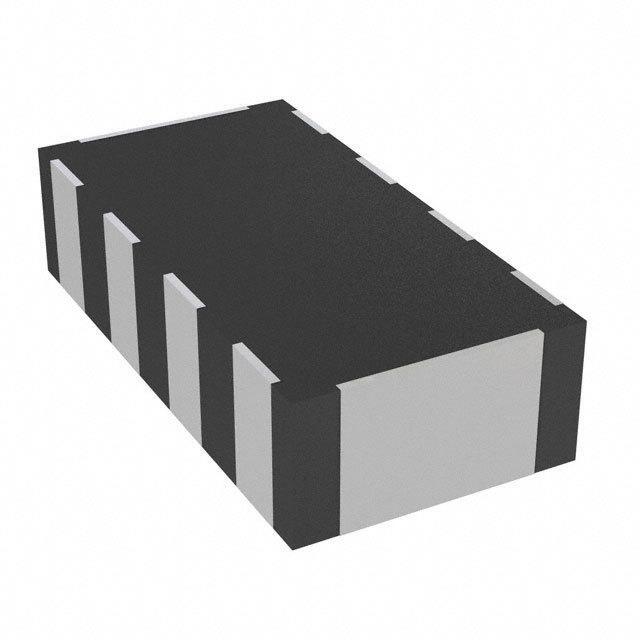

NFA31GD1006R84D Murata Electronics North America NFA31GD1006R84D Real Image
Same model may have multiple batches, images only for reference.
NFA31GD1006R84D Murata Electronics North America NFA31GD1006R84D Real Image
NFA31GD1006R84D Murata Electronics North America NFA31GD1006R84D Real Image
Same model may have multiple batches, images only for reference.

NFA31GD1006R84D

Part No NFA31GD1006R84D
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC 6.8 OHM/10PF SMD / EMI Filter RC-Circuit 0.05A 6VDC Flat Style SMD T/R
Datasheet
NFA31GD1006R84D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Type Low Pass
Filter Order 1st
Technology RC
Number of Channels 4
Resistance - Channel (Ohms) 6.8
Current 50mA
Values R = 6.8 Ohms, C = 10pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 6V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.039" (1.00mm)
Win Source Part Number 025221-NFA31GD1006R84D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name NFA31G
Introduction Date September 29, 2003
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian NFA31GD1006R84D CAD Model

Description

The NFA31GD1006R84D is a low pass filter manufactured by Murata Electronics North America.

  • Manufacturer: Murata Electronics North America
  • Win Source Part Number: 025221-NFA31GD1006R84D
  • Application: General-purpose
  • Voltage Rating: 6V
  • Mounting Type: SMD (SMT)
  • Height: 0.039 inches (1.00mm)
  • Current: 50mA
  • Number of Channels: Four
  • Filter Order: 1st
  • Resistance per Channel: 6.8 Ohms
  • Package: R = 6.8 Ohms, C = 10pF
  • ESD Protection: No
  • Operating Temperature: -40°C to 85°C
  • Dimension: 0.126 inches L x 0.063 inches W (3.20mm x 1.60mm)
  • Introduction Date: September 29, 2003
  • Status: Obsolete / end of life
  • Estimated EOL date: Unknown
  • Usage: Common-used part
  • Popularity: High
  • Supply and Demand Status: Balanced
