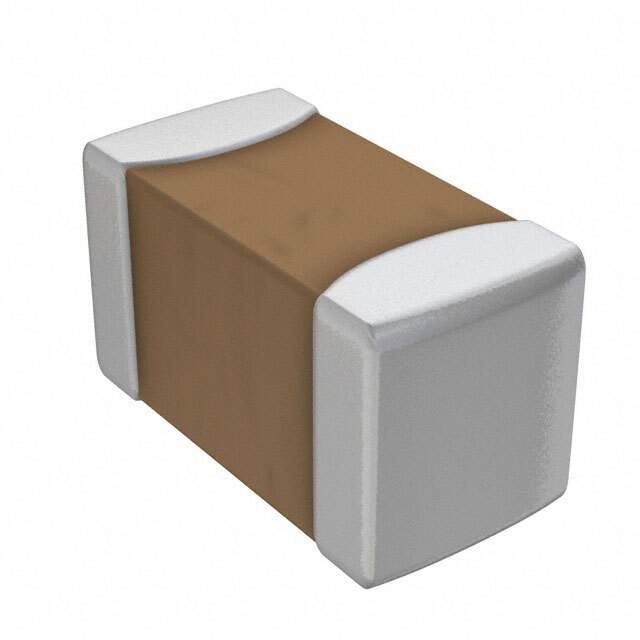

LXES15AAA1-100 Murata Electronics North America LXES15AAA1-100 Real Image LXES15AAA1-100 label picture 2 LXES15AAA1-100 real image
Same model may have multiple batches, images only for reference.

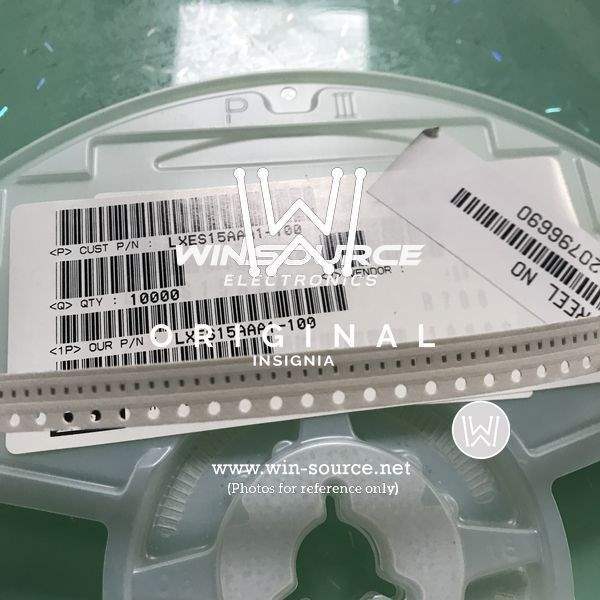

LXES15AAA1-100 Murata Electronics North America LXES15AAA1-100 Real Image LXES15AAA1-100 label picture 2 LXES15AAA1-100 real image
LXES15AAA1-100 Murata Electronics North America LXES15AAA1-100 Real Image LXES15AAA1-100 label picture 2 LXES15AAA1-100 real image
Same model may have multiple batches, images only for reference.

LXES15AAA1-100

Part No LXES15AAA1-100
Manufacturer Murata Electronics North America
Catalog TVS - Diodes
Description TVS DIODE 0402 / ESD Suppressor Diode TVS Bi-Dir 15V 2-Pin T/R
Datasheet
LXES15AAA1-100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Bidirectional Channels 1
Applications General Purpose
Capacitance @ Frequency 0.05pF @ 1MHz
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 1005
Win Source Part Number 020768-LXES15AAA1-100
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LXES15AAA1-100
Introduction Date December 15, 2011
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LXES15AAA1-100 CAD Model

Description

The Murata Electronics North America 020768-LXES15AAA1-100 is a zener type circuit protection component used for general purposes.

  • Supply and Demand Status: Balanced
  • Case/Package: 1005
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Cross-Reference: LXES15AAA1-153, LXES15AAA1-133
  • Status: Obsolete (EOL)
  • Reliability: Reliable and efficient
