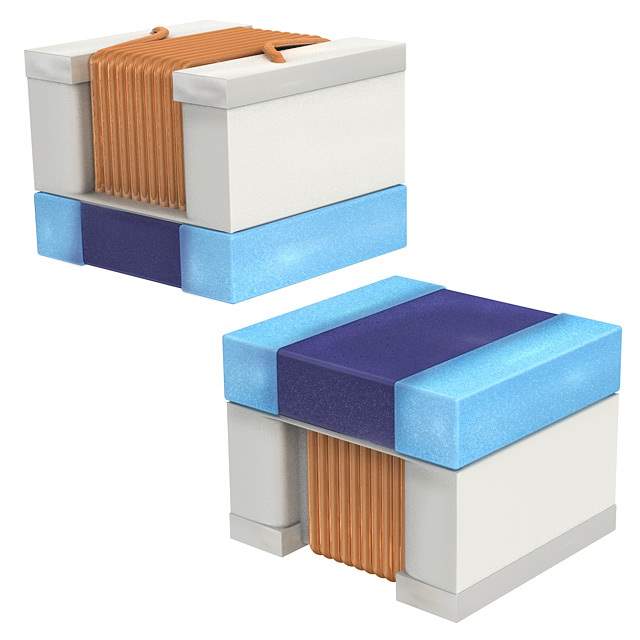

LQW2BASR56J00L Real Image
Same model may have multiple batches, images only for reference.

LQW2BASR56J00L

Part No LQW2BASR56J00L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 560NH 230MA 1.9 OHM
Datasheet
LQW2BASR56J00L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Air
Inductance 560nH
Tolerance ±5%
Current Rating 230mA
DC Resistance (DCR) 1.9 Ohm Max
Q @ Freq 23 @ 50MHz
Frequency - Self Resonant 270MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 25MHz
Mounting SMD (SMT)
Case / Package 0805 (2015 Metric)
Height - Seated (Max) 0.060" (1.52mm)
Win Source Part Number 115388-LQW2BASR56J00L
Ultra Librarian 3D Model Ultra Librarian LQW2BASR56J00L CAD Model

Description

This wirewound inductor from Murata Electronics North America is an active component with the following specifications:

  • Current Rating: 230mA
  • Inductance: 560nH
  • Height: 0.060" (1.52mm)
  • Mounting Type: SMD (SMT)
  • Tolerance: ±5%
  • Core Material: Air
  • Q @ Freq: 23 @ 50MHz
  • Self-Resonant Frequency: 270MHz
  • DC Resistance (DCR): 1.9 Ohm Max
  • Operating Temperature Range: -55°C to 125°C
  • Package: 0805 (2015 Metric)
  • Applications: Inductors, Coils, Chokes
