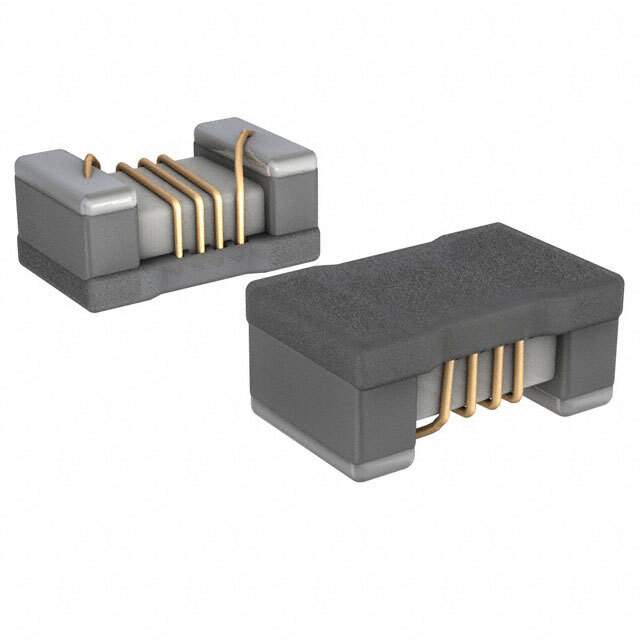

LQW21HNR56J00L Real Image
Same model may have multiple batches, images only for reference.

LQW21HNR56J00L

Part No LQW21HNR56J00L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 560NH 150MA 1.43 OHM
Datasheet
LQW21HNR56J00L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 560nH
Tolerance ±5%
Current Rating 150mA
DC Resistance (DCR) 1.43 Ohm Max
Q @ Freq 30 @ 100MHz
Frequency - Self Resonant 580MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 10MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 1057451-LQW21HNR56J00L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LQW21HNR56J00L CAD Model

Description

Murata Electronics North America's LQW21HNR56J00L is a wirewound inductor that is designed for use in a wide range of applications.

  • Popularity: medium
  • Supply and Demand: balanced
  • Tolerance: ±5%
