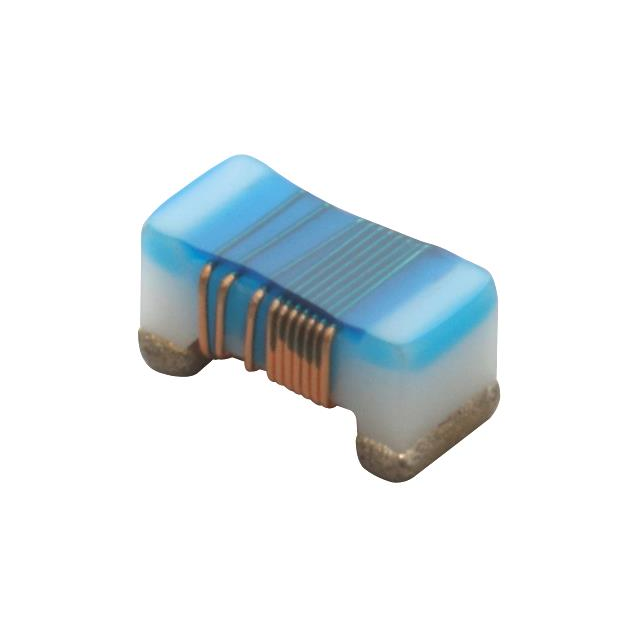

LQW18AN56NJ80D Real Image
Same model may have multiple batches, images only for reference.

LQW18AN56NJ80D

Part No LQW18AN56NJ80D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 56NH 770MA 260MOHM SMD / 56 nH Unshielded Wirewound Inductor 770 mA 260mOhm Max 0603 (1608 Metric)
Datasheet
LQW18AN56NJ80D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Murata Electronics
Packaging Reel - TR
Type Wirewound
Inductance 56 nH
Tolerance ±5%
Current Rating (Amps) 770 mA
Shielding Unshielded
DC Resistance (DCR) 260mOhm Max
Q @ Freq 38 @ 200MHz
Frequency - Self Resonant 2.6GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting Surface Mount
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number LQW18AN
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 4,000
Win Source Part Number 1327990-LQW18AN56NJ80D
Ultra Librarian 3D Model Ultra Librarian LQW18AN56NJ80D CAD Model

Description

The Murata Electronics LQW18AN56NJ80D is a wirewound inductor that comes with unshielded shielding and has a size of 0.063 inches in length and 0.031 inches in width.

  • Shielding: Unshielded
  • Size: 0.063 inches in length and 0.031 inches in width
  • Inductance: 56 nanohenries
  • Inductance Tolerance: ±5%
  • DC Resistance (DCR): 260 milliohms max
  • Operating Temperature Range: -55°C to 125°C
  • Current Rating: Up to 770 mA
  • Package: Reel of 4000 units
  • Mounting: Surface-Mounted
